Features
CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.
SELF-CLEAN WITH STEAM CLEAN OPTION
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor.

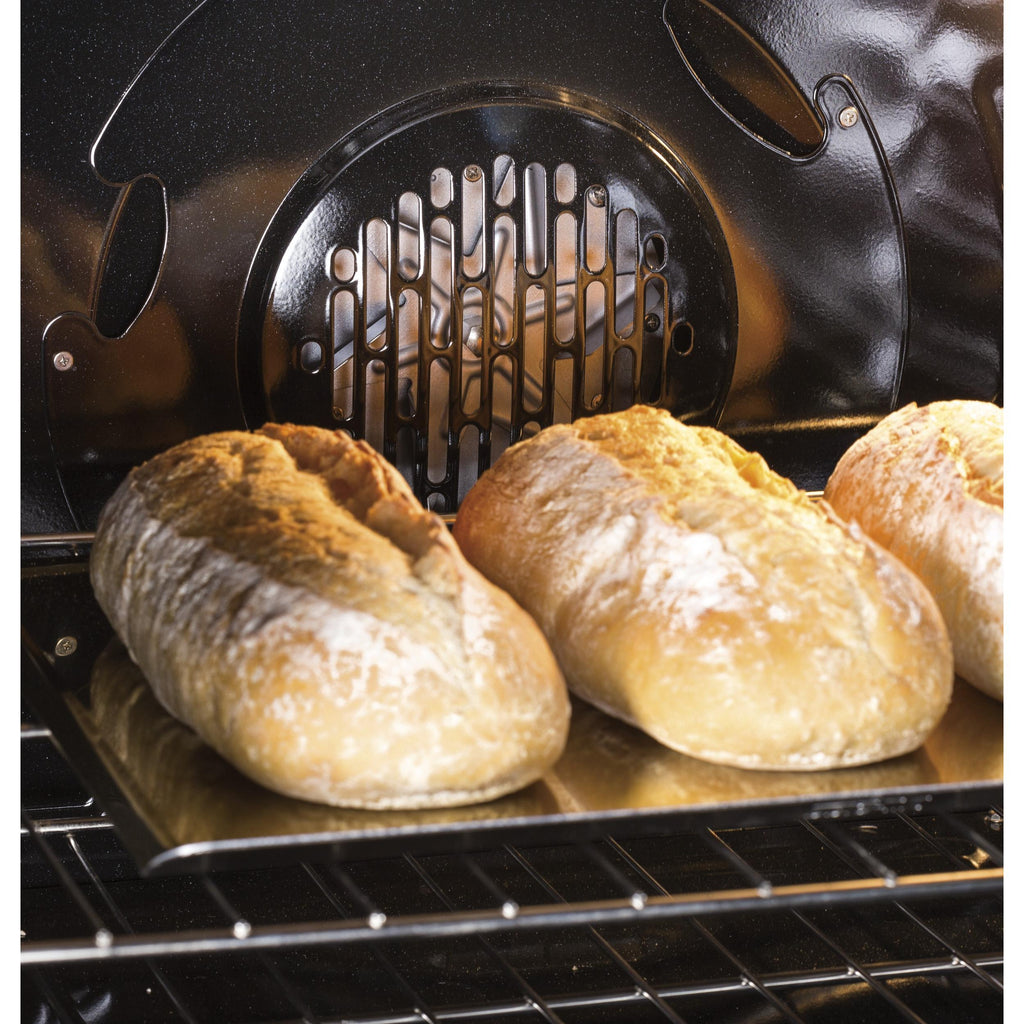

GAS CONVECTION OVEN
Circulates heat for high-quality results.

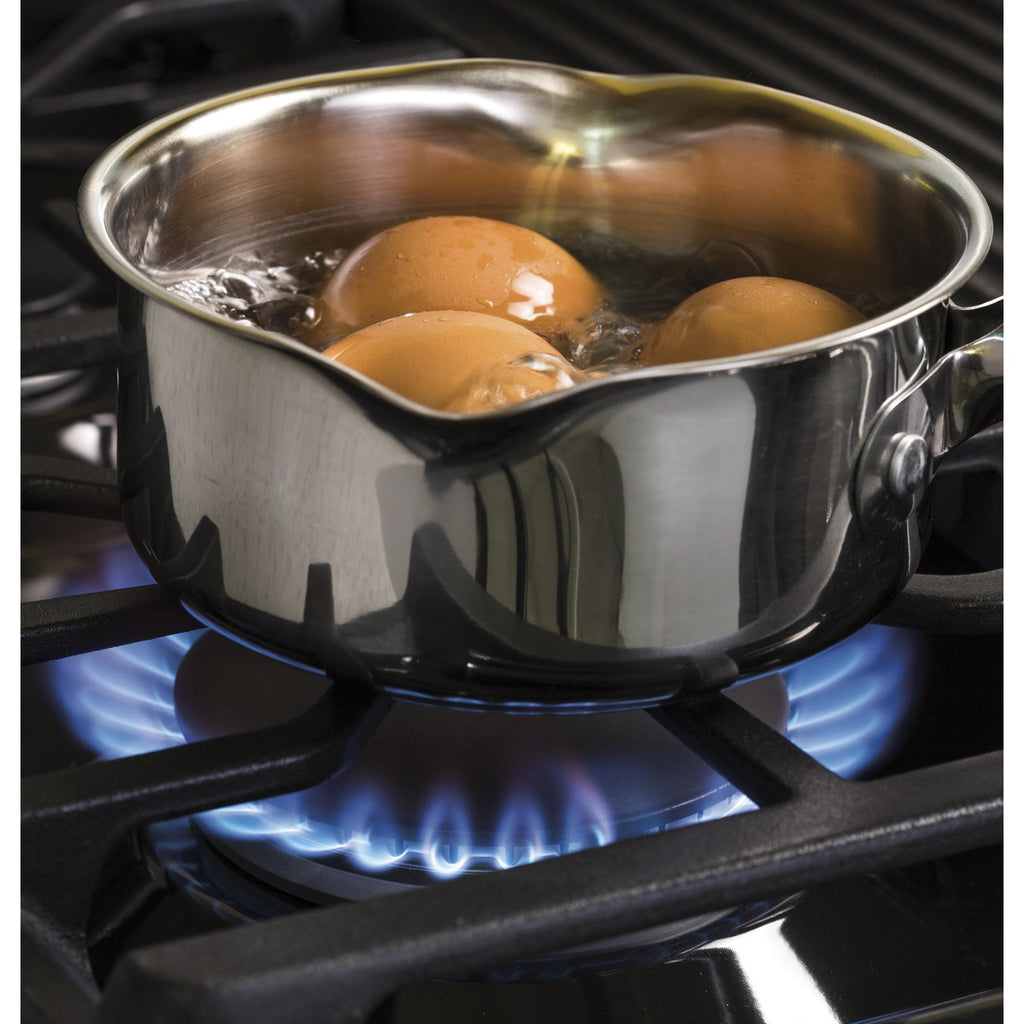

PRECISE SIMMER BURNER
This burner setting provides low, even heat so delicate dishes don't burn.

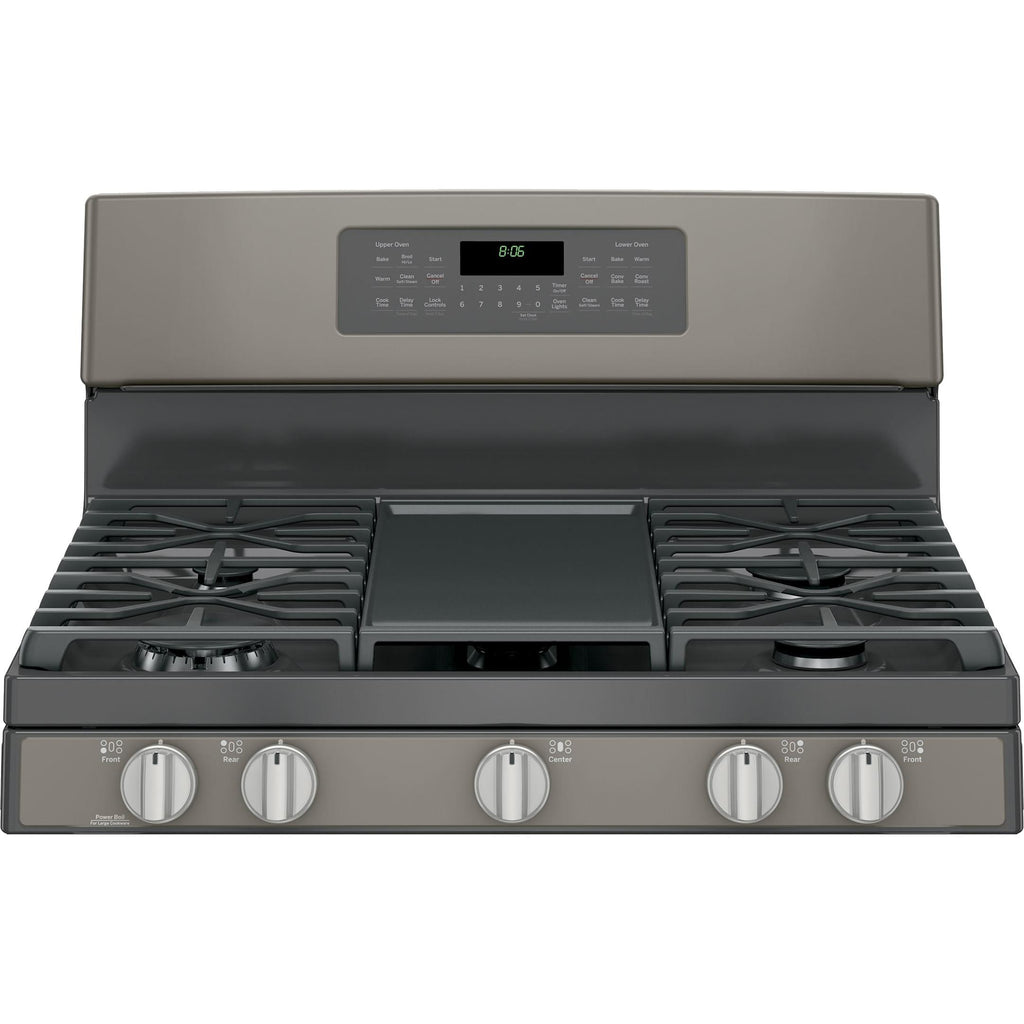

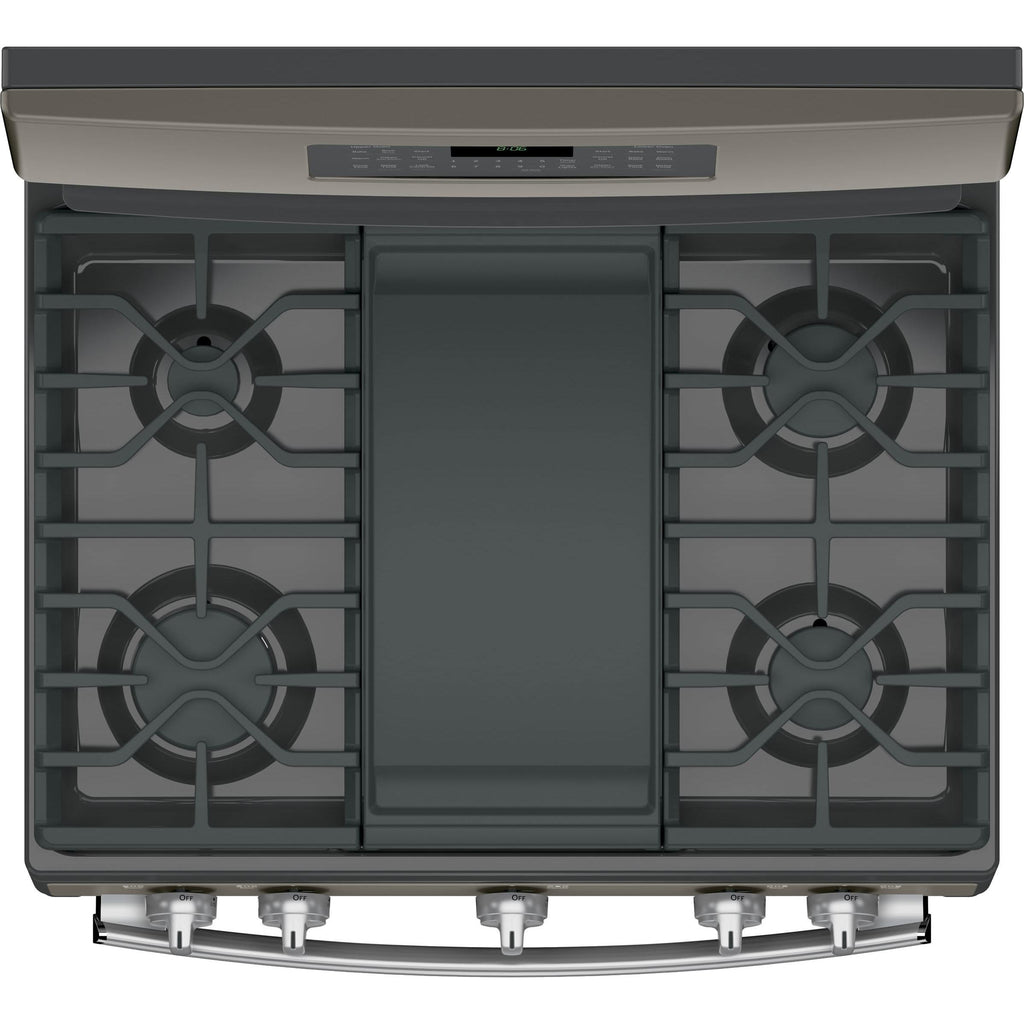

EDGE-TO-EDGE SEAMLESS COOKTOP
A large, seamless surface makes it easy to wipe away messes

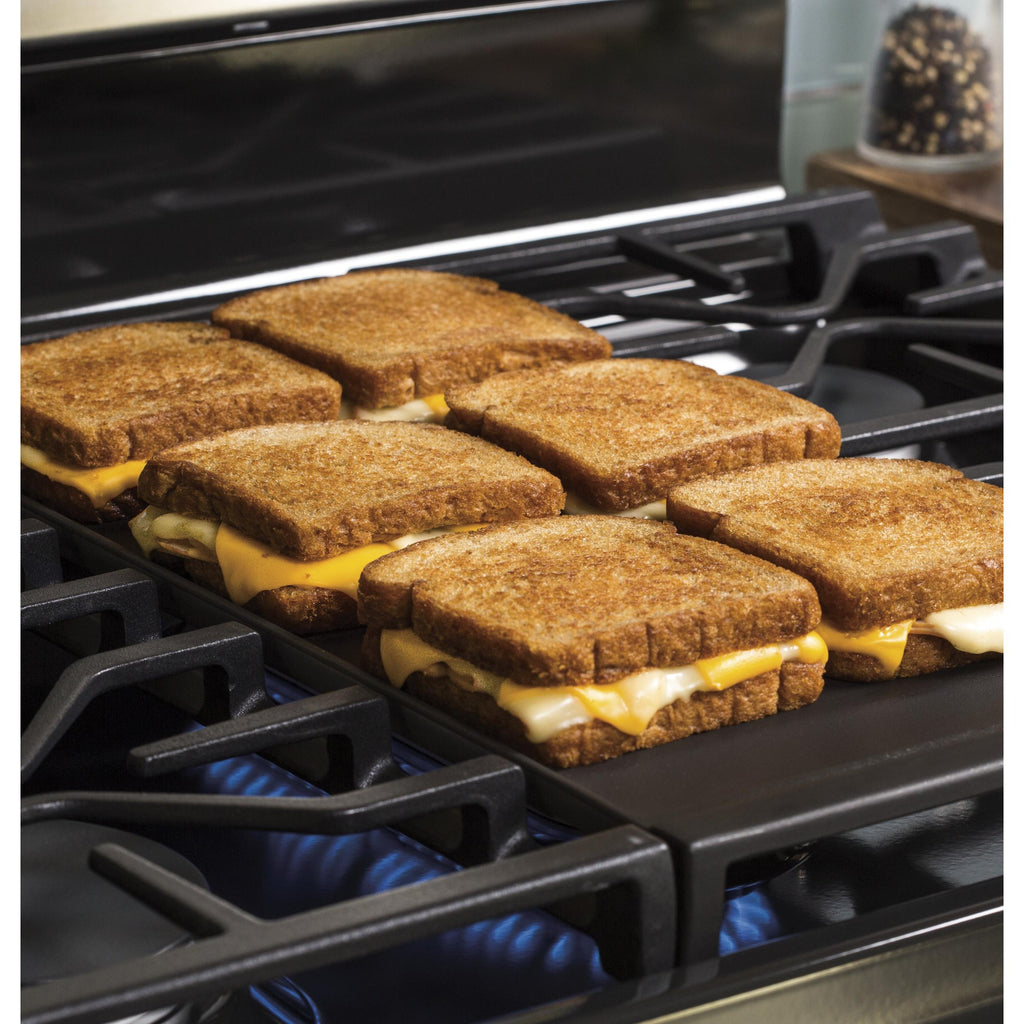

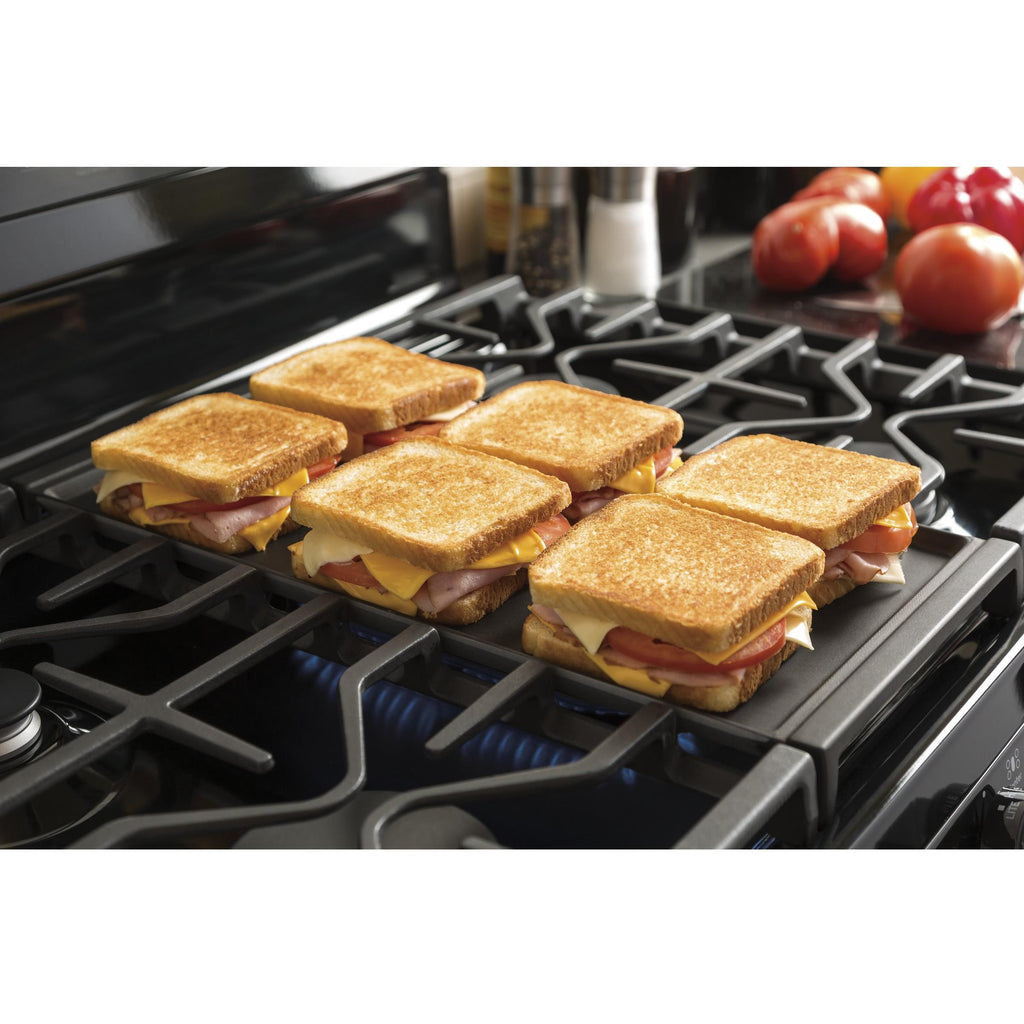

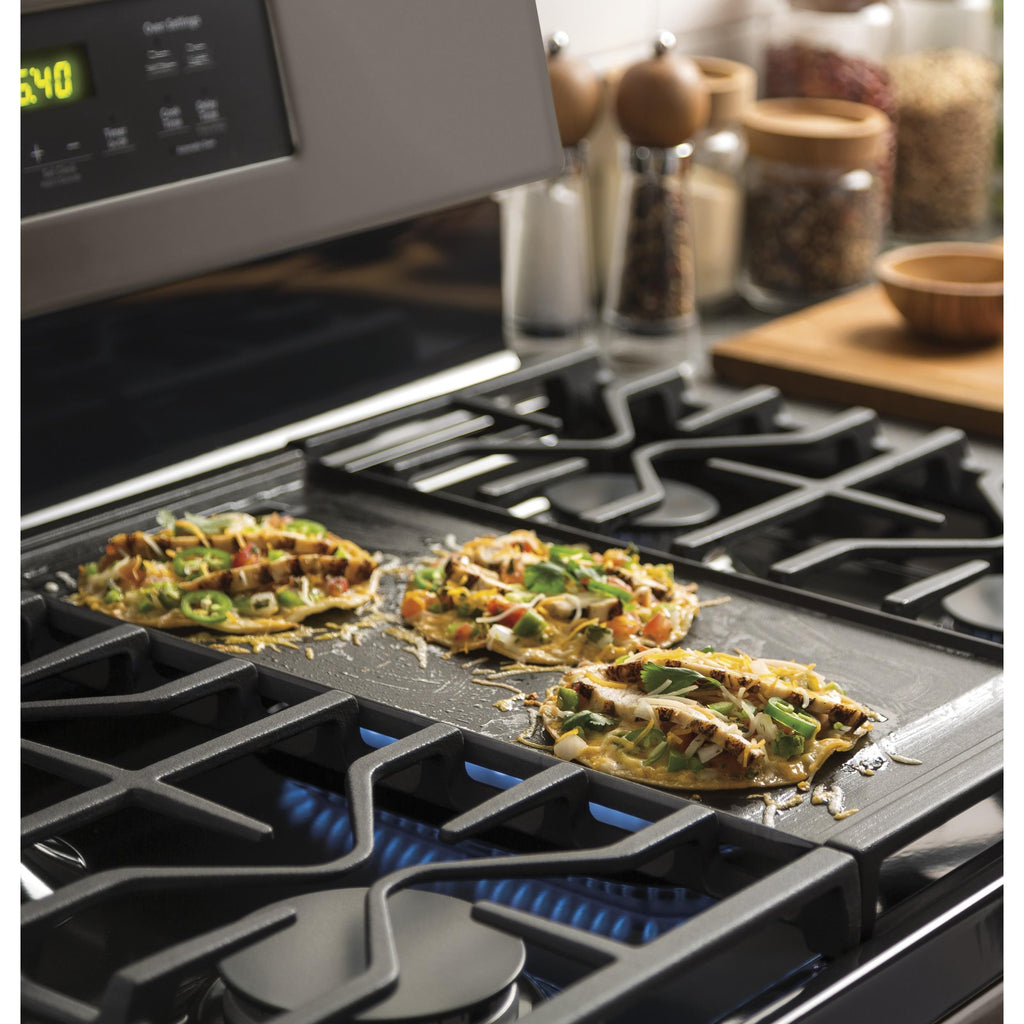

EXTRA-LARGE INTEGRATED NON-STICK GRIDDLE
Cook up to six grilled cheeses at once on the industry's largest integrated griddle

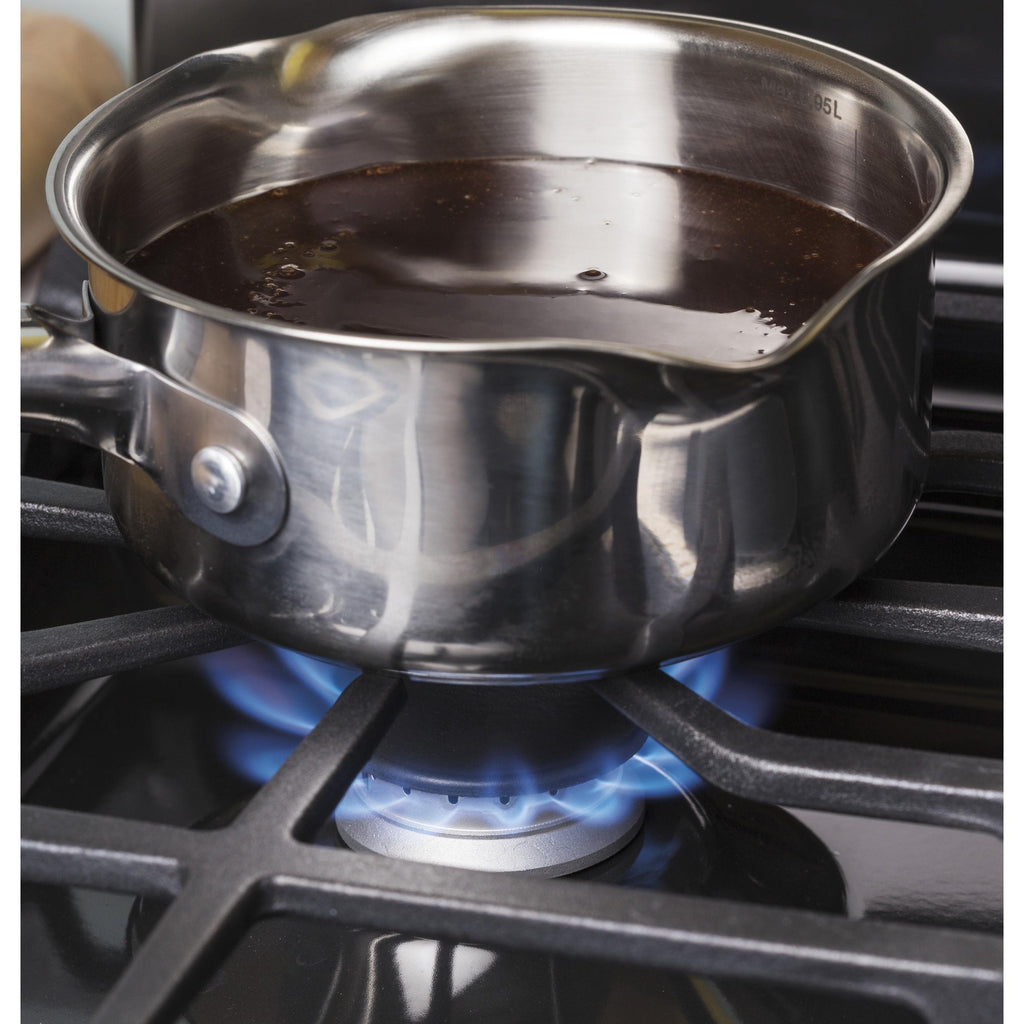

18,000 BTU POWER BOIL BURNER
Boil water fast with intense heat from this 18,000 BTU burner.
HEAVY DUTY, DISHWASHER SAFE GRATES
Easily and safely clean grates in the dishwasher
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Slate Grey
Manufacturer Color
Slate
Appliance Care
• Self-Clean with Steam Clean Option (Both Ovens)
• Auto Self Clean
• Auto Self Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Burner: 18,000 BTU Power Boil
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 9,500 BTU
• Right Rear Burner: 12,000 BTU
• Center Burner: 10,000 BTU Oval
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 9,500 BTU
• Right Rear Burner: 12,000 BTU
• Center Burner: 10,000 BTU Oval
Burners
Sealed
Other
Griddle

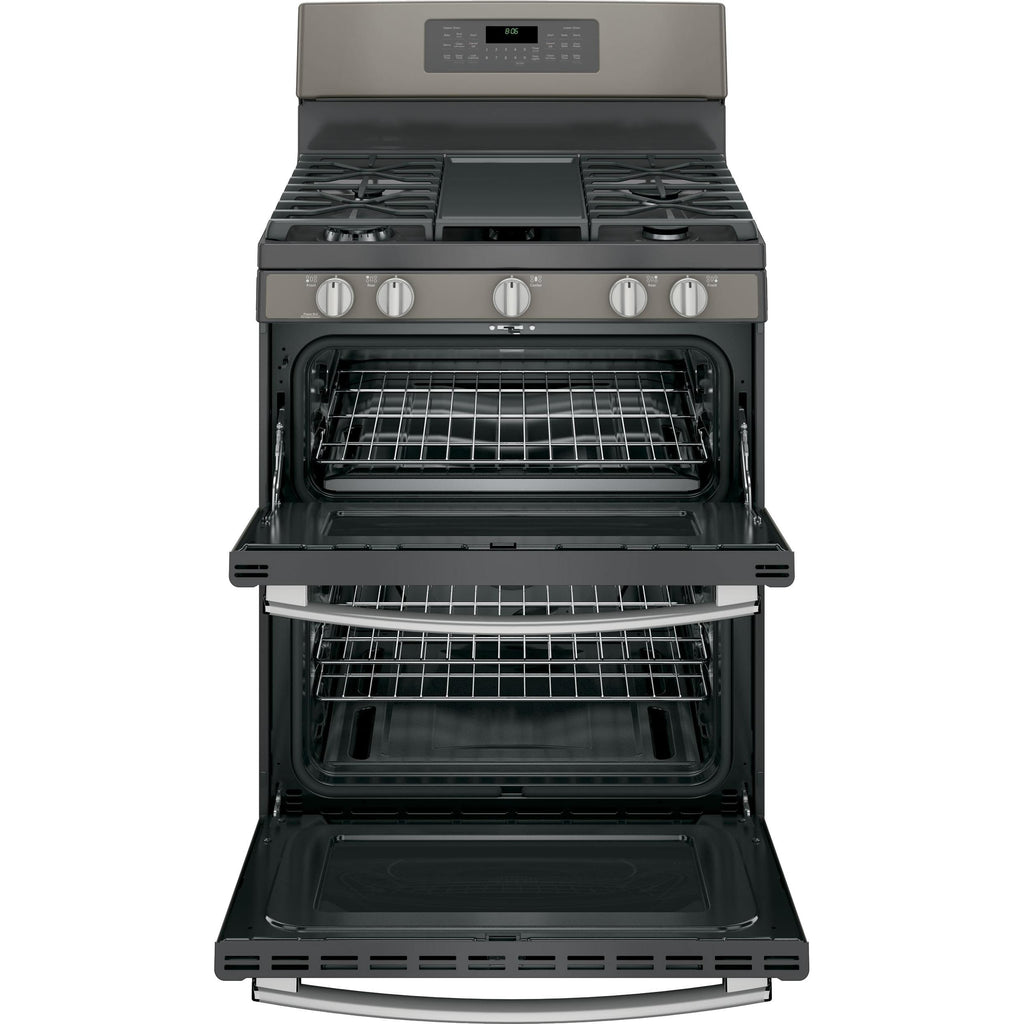

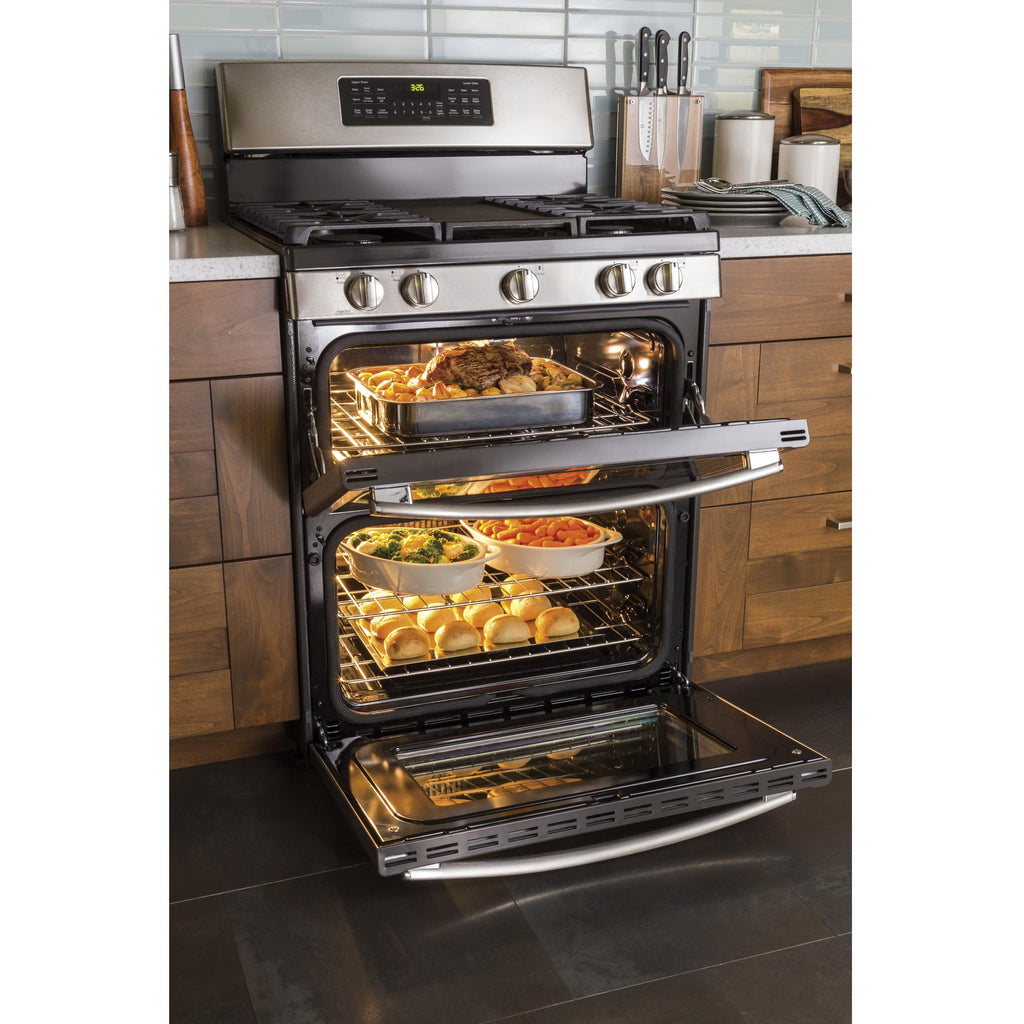

Oven
Capacity (cu. ft.)
• Total Capacity: 6.8 cu.ft.
• Upper Oven: 2.5 cu.ft.
• Lower Oven: 4.3 cu.ft.
• Upper Oven: 2.5 cu.ft.
• Lower Oven: 4.3 cu.ft.
Number of Ovens
Double
Features
Technologies
Convection Technology
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Cooktop Surface: Black, Edge-to-Edge, One-Piece Upswept, Porcelain-Enamel
• Dishwasher Safe Grates
• Audible Preheat Signal
• Cooking Technology: Traditional Upper, Convection Lower
• 1 Auto Incandescent (Both Ovens) Lighting
• 3 Oven Racks
• Big View Oven Window
• Bake/Broiler BTU Rating - LP (000's BTU's): 10.0 / 12.5 Upper; 13.5 / 0.0 Lower
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's): 12.0 / 13.5 - Upper; 14.0 / 0.0 - Lower
• Top Burner BTU Rating - LP (000's BTU's): (1) 18.0; (1) 5.0; (1) 18.0; (1) 12.0; (1) 8.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's): (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0
• Dishwasher Safe Grates
• Audible Preheat Signal
• Cooking Technology: Traditional Upper, Convection Lower
• 1 Auto Incandescent (Both Ovens) Lighting
• 3 Oven Racks
• Big View Oven Window
• Bake/Broiler BTU Rating - LP (000's BTU's): 10.0 / 12.5 Upper; 13.5 / 0.0 Lower
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's): 12.0 / 13.5 - Upper; 14.0 / 0.0 - Lower
• Top Burner BTU Rating - LP (000's BTU's): (1) 18.0; (1) 5.0; (1) 18.0; (1) 12.0; (1) 8.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's): (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0
Electrical Information
Information
• 120 V
• 15 A
• 60 Hz
• 15 A
• 60 Hz
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Griddle Accessory
• Griddle Accessory
Optional
Center Grate
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
47.25 inch(es) / 120.02 cm
Depth (Without Handles)
26.75 inch(es) / 67.94 cm
Depth (Including Handles)
29.25 inch(es) / 74.30 cm
Weight
205.01 lb(s) / 92.99 kg
Additional Dimensions
Oven Interior Dimensions (W x H x D): 24" x 9-1/2" x 19-1/8" (Upper), 24" x 15" x 20-5/8" (Lower)
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
225 lb(s) / 102.06 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691811473
