Features
WIFI CONNECT
Control your oven with your smart device or simply your voice using WiFi Connect.
SELF-CLEAN WITH STEAM CLEAN
Keep your oven looking spotless with a high heat steam clean option for small spills and a self-clean cycle for larger messes.

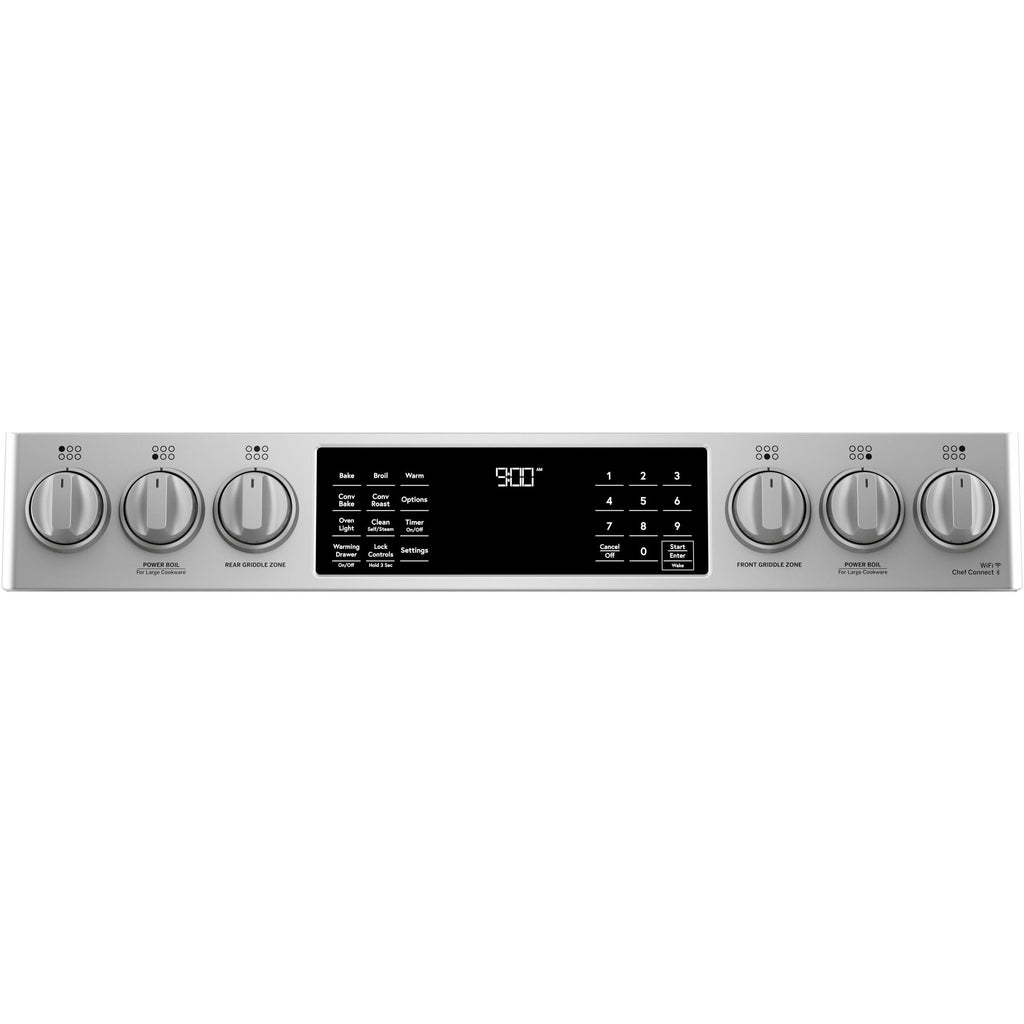

LED CONTROL PANEL
Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted.
CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.
TRUE EUROPEAN CONVECTION
The European or "true" convection system that has a dedicated third dual loop heating element surrounding the convection fan, which provides even heating, even browning and superior baking.
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean with Steam Clean Option
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Burner: 21,000 BTU Tri-ring
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right FrontBurner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Burner: 9,500 BTU Front / 9,500 BTU Rear
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right FrontBurner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Burner: 9,500 BTU Front / 9,500 BTU Rear
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
5.7 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake
• Convection Roast
• Bake/Broil: 2850/4000W
• Convection: 2500W
• Convection Roast
• Bake/Broil: 2850/4000W
• Convection: 2500W
Features
Technologies
• True European Convection with Precise Air
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Cooktop Surface: Deep Recessed; Porcelain-Enamel; Gray
• Dishwasher Safe Knobs
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• Heavy-Cast Edge-to-Edge Grates
• Variable with Delay Clean Option
• 2 Self-Clean Oven Racks
• 1 Roller Rack
• 6 Rack Positions
• Dishwasher Safe Knobs
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• Heavy-Cast Edge-to-Edge Grates
• Variable with Delay Clean Option
• 2 Self-Clean Oven Racks
• 1 Roller Rack
• 6 Rack Positions
Drawer Features
Warming
Yes
Electrical Information
Information
• 208 V /240 V
• 30 A
• 30 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Optional
• Integrated Cast Iron JXCGRILL1
• Trim Kit JXFILLR1DD
• Trim Kit JXFILLR1DD
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
223.99 lb(s) / 101.60 kg
Additional Dimensions
• Cabinet Opening: 30"
• Height to Top of Rear Vent Trim: 37-3/8"
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 19-7/8" x 20-5/8"
• Height to Top of Rear Vent Trim: 37-3/8"
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 19-7/8" x 20-5/8"
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
244.01 lb(s) / 110.68 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691832492
