Features
SELF-CLEAN WITH STEAM CLEAN
Keep your oven looking spotless with a high heat steam clean option for small spills and a self-clean cycle for larger messes.
WIFI CONNECT
Control your oven with your smart device or simply your voice using WiFi Connect.
TEMPERATURE PROBE
Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door.
Additional Features
CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.
TRUE EUROPEAN CONVECTION
The European or "true" convection system that has a dedicated third dual loop heating element surrounding the convection fan, which provides even heating, even browning and superior baking.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Platinum Glass
Manufacturer Color
Platinum Glass
Appliance Care
• Self-Clean with Steam Clean Option
• Auto Self Clean
• Delay Clean Option
• Auto Self Clean
• Delay Clean Option

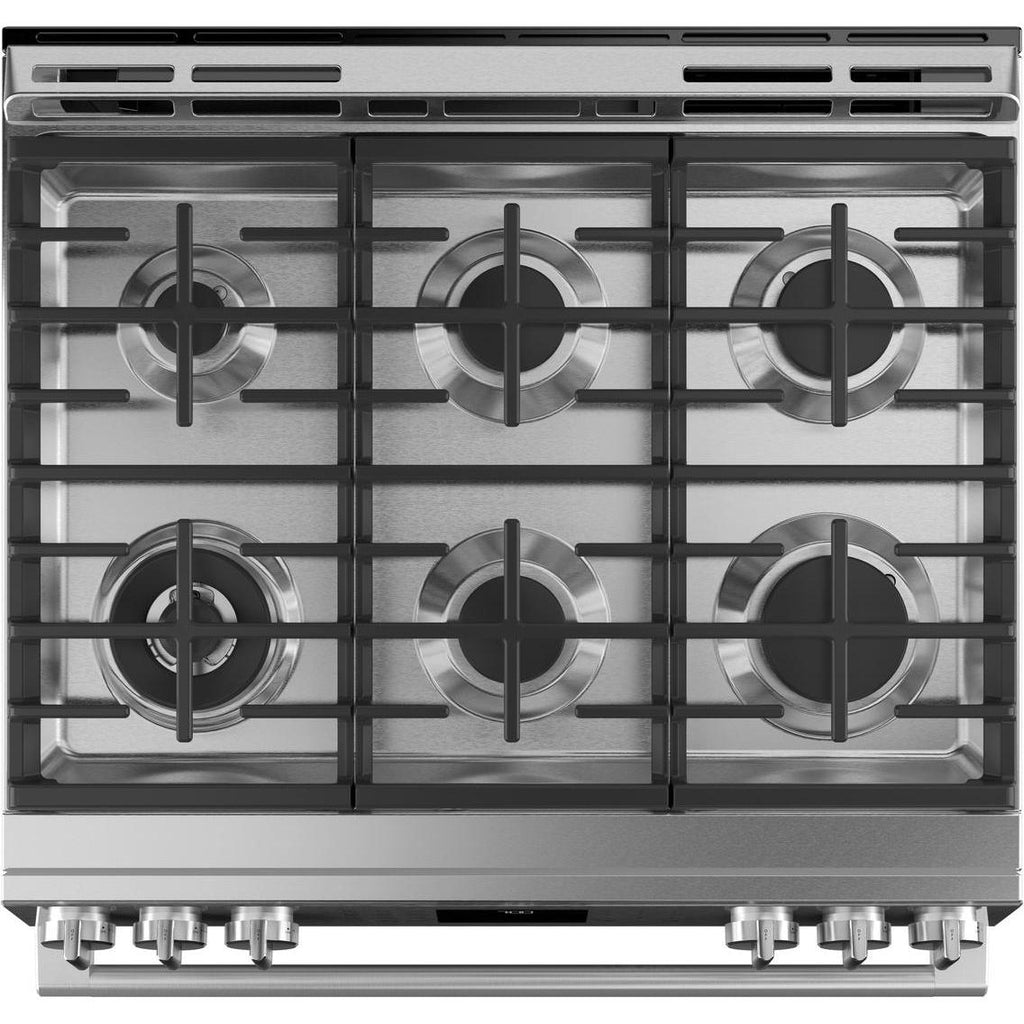

Cooktop
Burners/Elements
6
Burners/Elements Output
• Left Front: 21,000 BTU Tri-ring Burner
• Left Rear: 5,000 BTU Precise Simmer
• Right Front: 15,000 BTU
• Right Rear: 12,000 BTU
• Center Front: 9,500 BTU
• Center Rear: 9,500 BTU
• Left Rear: 5,000 BTU Precise Simmer
• Right Front: 15,000 BTU
• Right Rear: 12,000 BTU
• Center Front: 9,500 BTU
• Center Rear: 9,500 BTU
Burners
Sealed
Other
Griddle

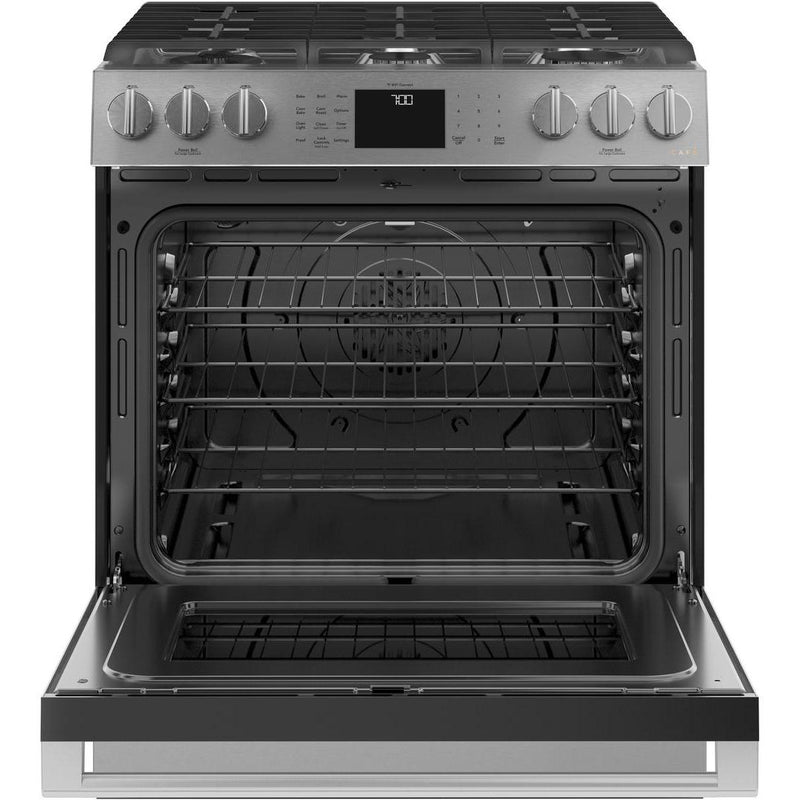

Oven
Capacity (cu. ft.)
5.6 cu.ft.
Number of Ovens
Single
Programs
• Convection 1200W
• Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 13.5 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 16.0 Bake / 16.5 Broiler
• Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 13.5 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 16.0 Bake / 16.5 Broiler
Features
Technologies
• True European Convection with Precise Air
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Deep Recessed; Stainless Steel Cookop
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• 3 Self-Clean Oven Racks
• 6 Rack Positions
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• 3 Self-Clean Oven Racks
• 6 Rack Positions
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Griddle
• Griddle
Optional
• Grill: JXCGRILL1
• Trim Kit: JXFILLR1SS
• Trim Kit: JXFILLR1SS
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.37 inch(es) / 74.61 cm
Weight
223.99 lb(s) / 101.60 kg
Additional Dimensions
• Depth with Door Open: 47-1/2"
• Height to Top of Rear Vent Trim: 37-3/8 in
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 19-1/2" x 20-5/8"
• Height to Top of Rear Vent Trim: 37-3/8 in
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 19-1/2" x 20-5/8"
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
244.01 lb(s) / 110.68 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691839811
