Features
WIFI CONNECT
Control your oven with your smart device or simply your voice using WiFi Connect.
SELF-CLEAN WITH STEAM CLEAN
Keep your oven looking spotless with a high heat steam clean option for small spills and a self-clean cycle for larger messes.
INDUCTION TECHNOLOGY
Induction elements use electricity to produce a magnetic field that reacts with the iron in metal cookware - including cast iron and magnetic stainless steel pans - and transfers the heat to the cookware.
TEMPERATURE PROBE
Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door.
Additional Features
TRUE EUROPEAN CONVECTION
The European or "true" convection system that has a dedicated third dual loop heating element surrounding the convection fan, which provides even heating, even browning and superior baking.
CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.
Specifications
General
Fuel Type
Electric - Induction
Installation Type
Slide-in
Color
Platinum Glass
Manufacturer Color
Platinum Glass
Appliance Care
• Self-Clean with Steam Clean Option
• Auto Self Clean
• Delay Clean Option
• Auto Self Clean
• Delay Clean Option

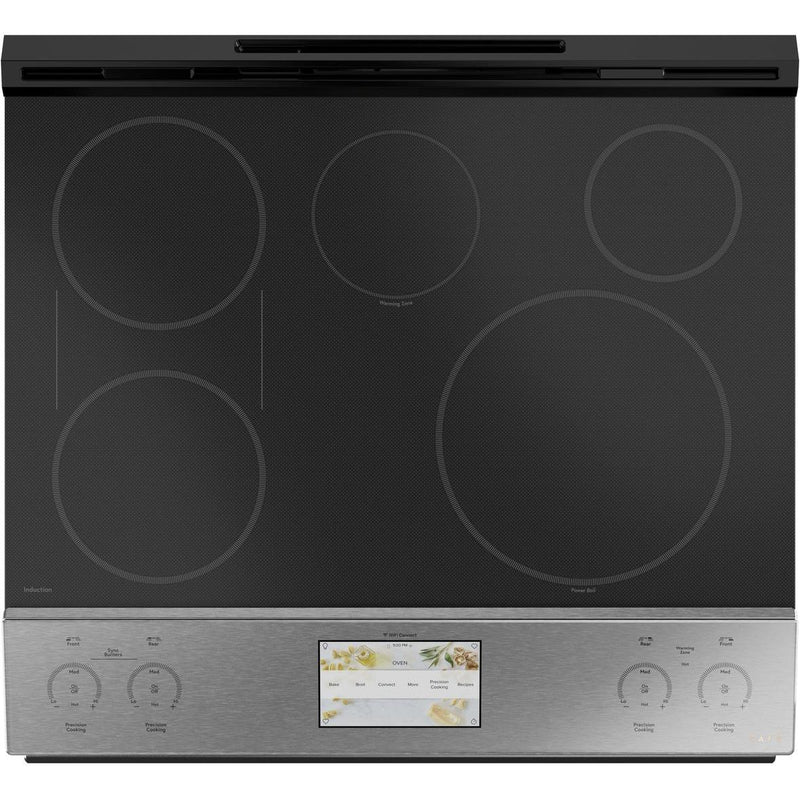

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Element: 2500W Sync Element
• Left Rear Element: 2500W Sync Element With Temp Sensor
• Right Front Element: 3700W Power Boil
• Right Rear Element: 1800W
• Center Element: 100W Warming Zone
• Left Rear Element: 2500W Sync Element With Temp Sensor
• Right Front Element: 3700W Power Boil
• Right Rear Element: 1800W
• Center Element: 100W Warming Zone
Burner/Element Size
• Left Front Element: 8"
• Left Rear Element: 8"
• Right Front Element: 11"
• Right Rear Element: 6"
• Center Element: 6"
• Left Rear Element: 8"
• Right Front Element: 11"
• Right Rear Element: 6"
• Center Element: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.3 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake Multi-Rack
• Convection Roast
• Precision Cooking Modes
• Proof
• Warming
• Convection Roast
• Precision Cooking Modes
• Proof
• Warming
Features
Technologies
• True European Convection with Precise Air
• Chef Connect
• Amazon Alexa
• DiGiorno
• Drop
• Hestan Cue
• IFTTT
• Innit
• Nest
• The Google Assistant
• Chef Connect
• Amazon Alexa
• DiGiorno
• Drop
• Hestan Cue
• IFTTT
• Innit
• Nest
• The Google Assistant
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information

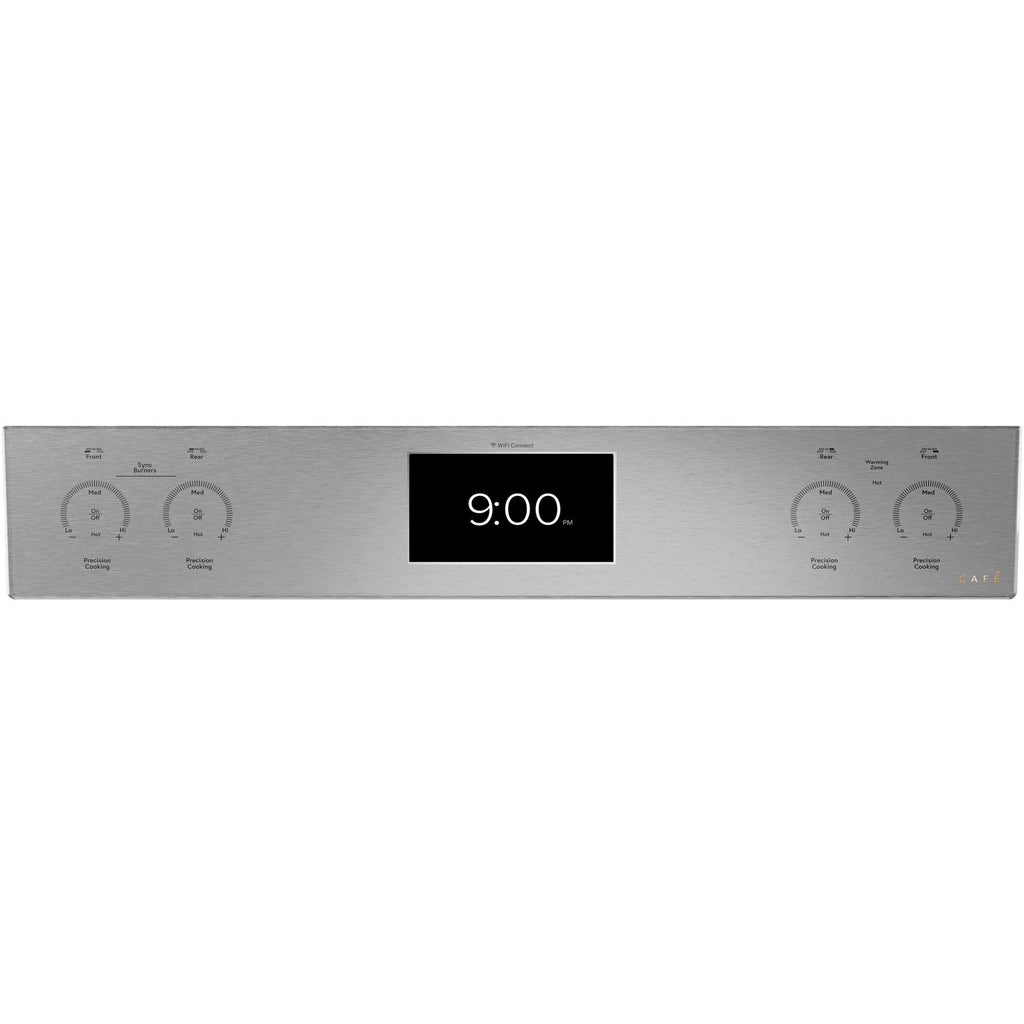

• 7" LCD Touch Screen Panel
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Bake)
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven Camera
• Oven "ON" Light
• Pan Temperature Sensor
• Precision Cooktop Sensor
• Self-Clean Cool Down Time Display
• Temperature Probe
• Hot Surface Indicator Lights
• Melt Setting

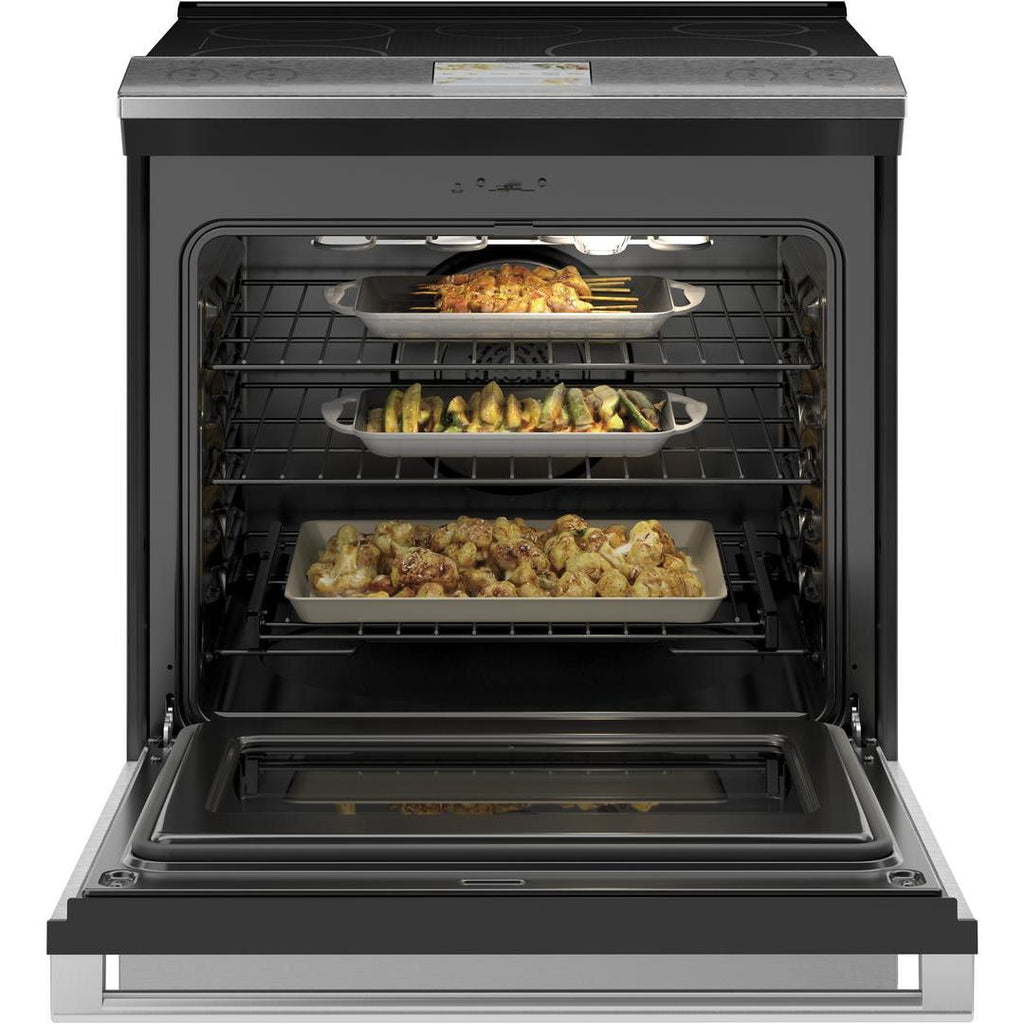

• 1 Self-Clean Heavy-Duty Roller Rack
• 2 Self-Clean Heavy-Duty Oven Racks
• 6 Rack Positions
• Bake: 2850W
• Broiler: 4000W
• Convection: 2500W
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Bake)
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven Camera
• Oven "ON" Light
• Pan Temperature Sensor
• Precision Cooktop Sensor
• Self-Clean Cool Down Time Display
• Temperature Probe
• Hot Surface Indicator Lights
• Melt Setting
• 1 Self-Clean Heavy-Duty Roller Rack
• 2 Self-Clean Heavy-Duty Oven Racks
• 6 Rack Positions
• Bake: 2850W
• Broiler: 4000W
• Convection: 2500W
Electrical Information
Information
• 208 / 240 V
• 40 A
• 40 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Optional
• Trim Kit: JXFILLR1SS
• Probe Accessory: JXPROBE1
• Probe Accessory: JXPROBE1
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.25 inch(es) / 94.62 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
200 lb(s) / 90.72 kg
Additional Dimensions
• Depth with Door Open: 47 1/2"
• Height to Top of Rear Vent Trim: 37 1/4"
• Height to Cooking Surface: 36 +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24-1/8" x 19-1/2" x 19-3/8"
• Height to Top of Rear Vent Trim: 37 1/4"
• Height to Cooking Surface: 36 +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24-1/8" x 19-1/2" x 19-3/8"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
44.8 inch(es) / 113.79 cm
Depth
30.9 inch(es) / 78.49 cm
Weight
220.99 lb(s) / 100.24 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691841166
