Features

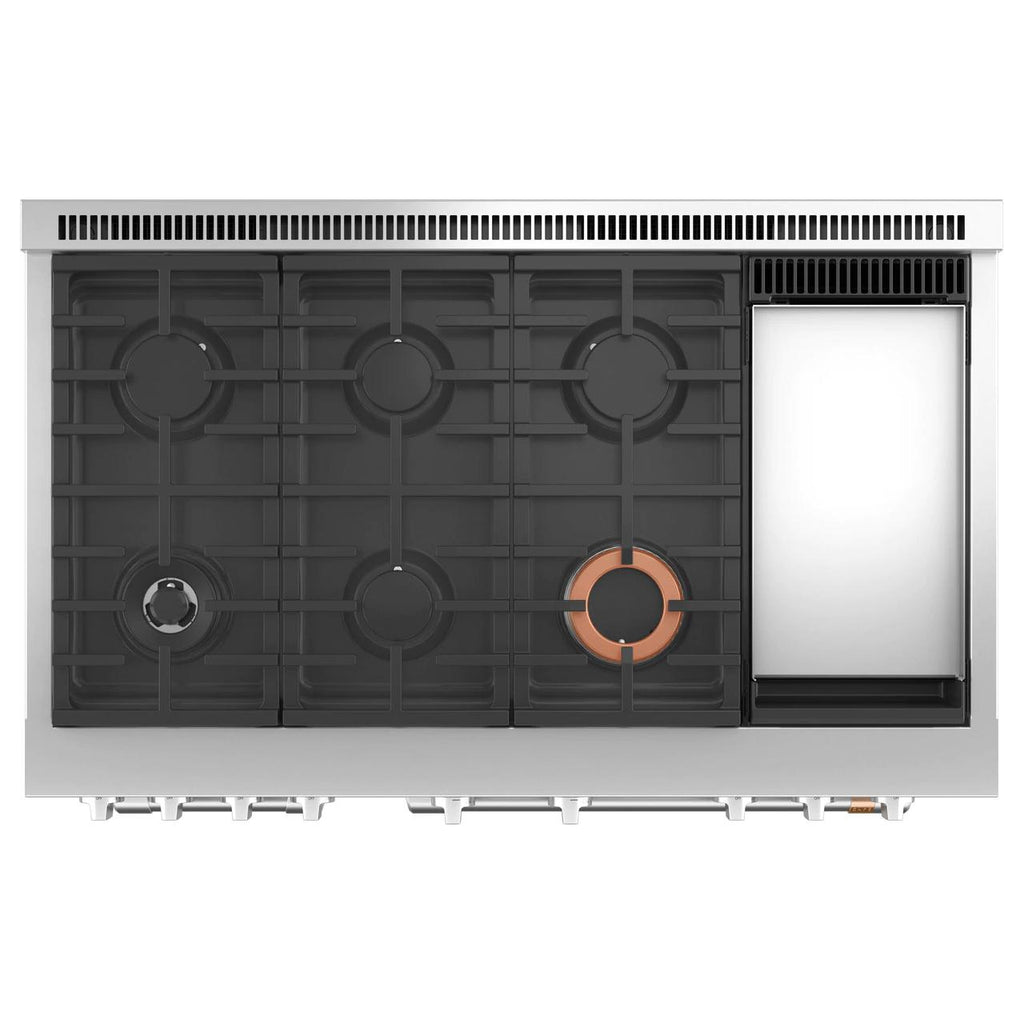

VERSATILE COOKTOP
The versatile cooktop on this commercial-style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.

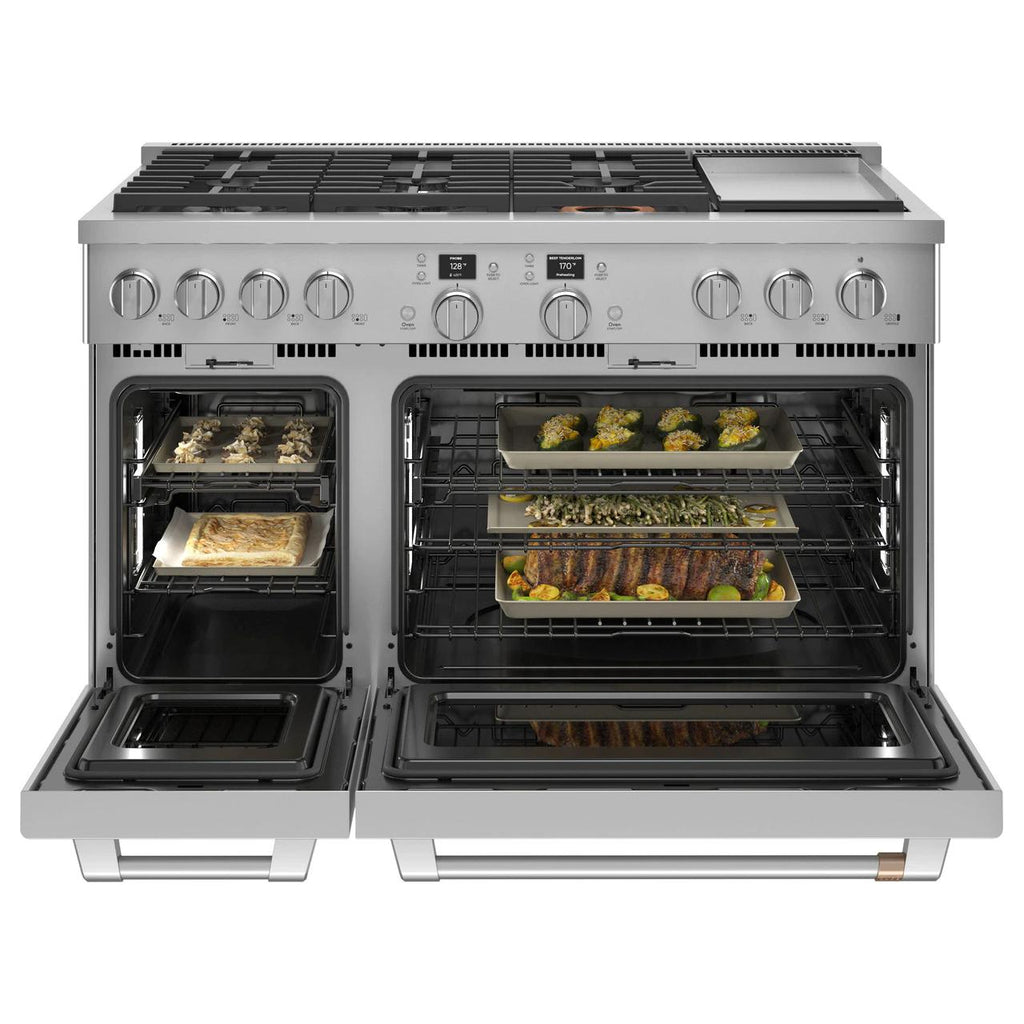

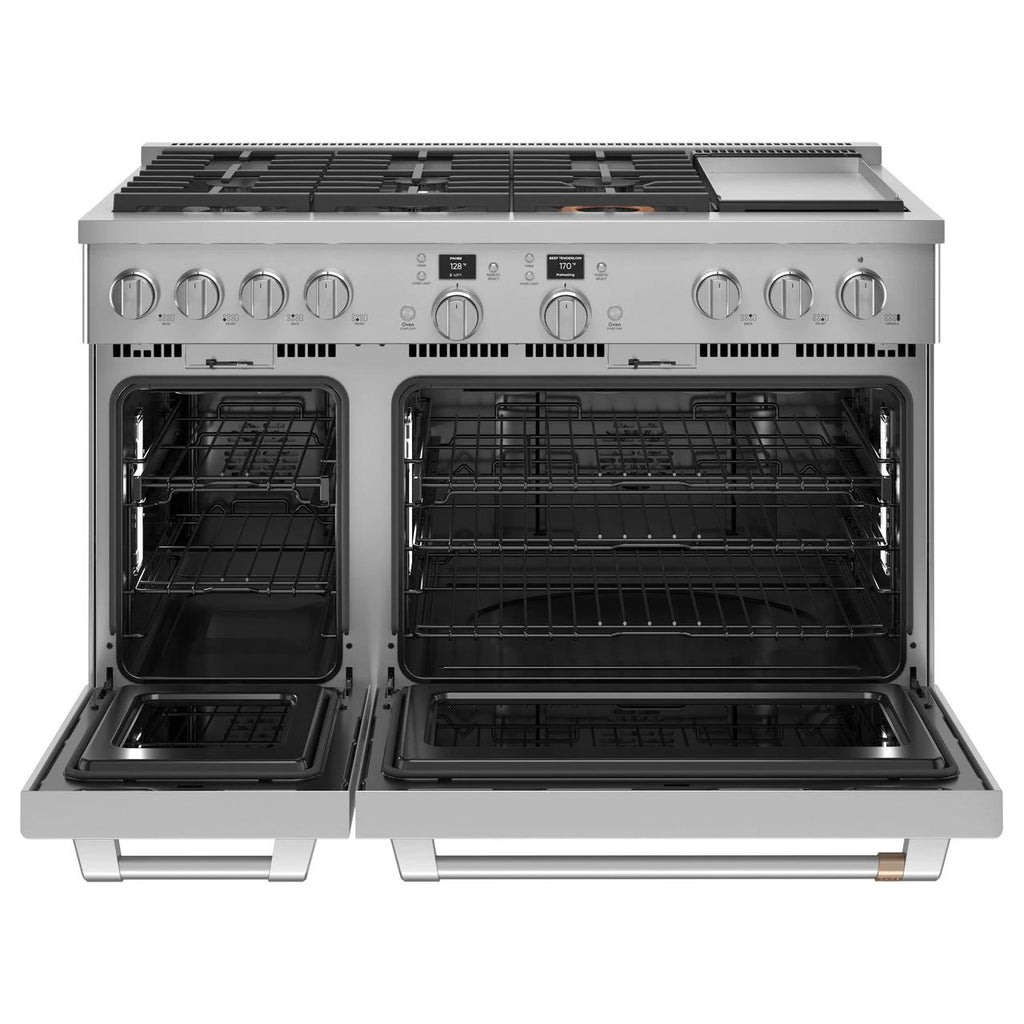

CATERER OVEN
A large capacity oven fits a full-size catering pan and has three racks, large 8-pass bake and broil elements for even heat coverage and Precision Oven modes to help guarantee results for meals of any size.

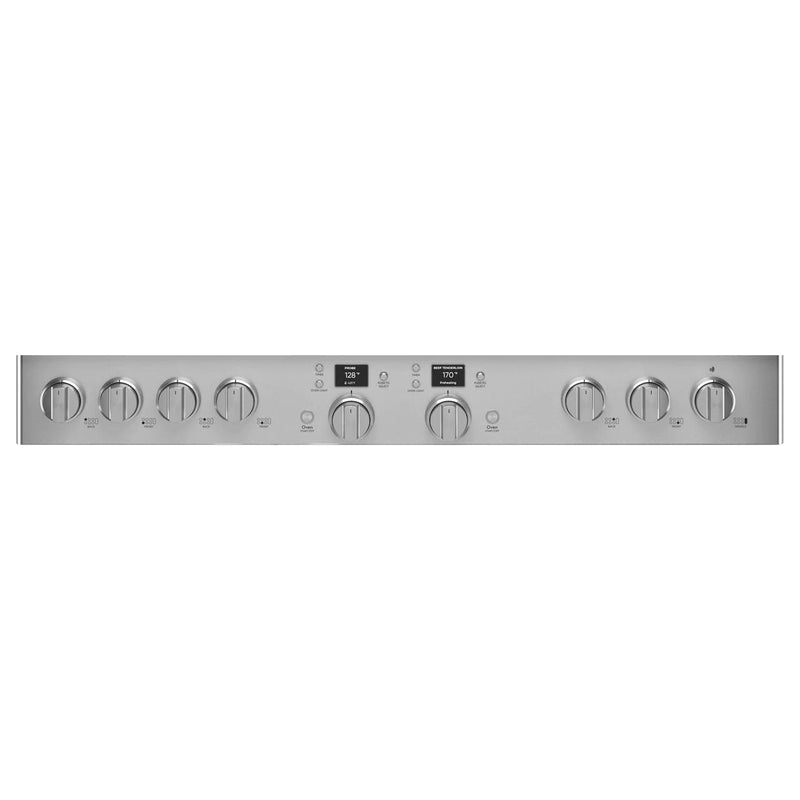

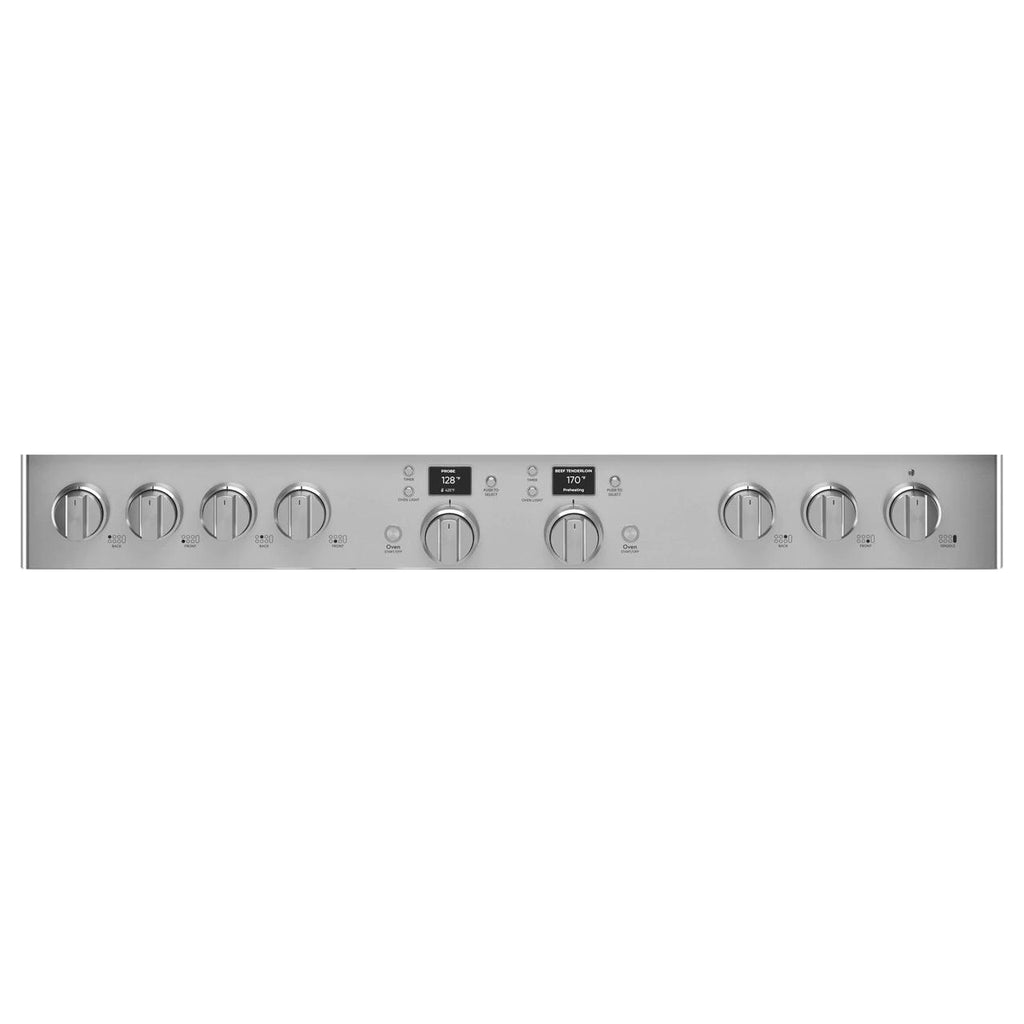

COLOR-MATCHED MANIFOLD WITH LCD CONTROL
Get a coordinated look with a manifold that matches the range's finish and an LCD control panel that provides information like oven and probe temperatures and cooking time for perfect cooking results.

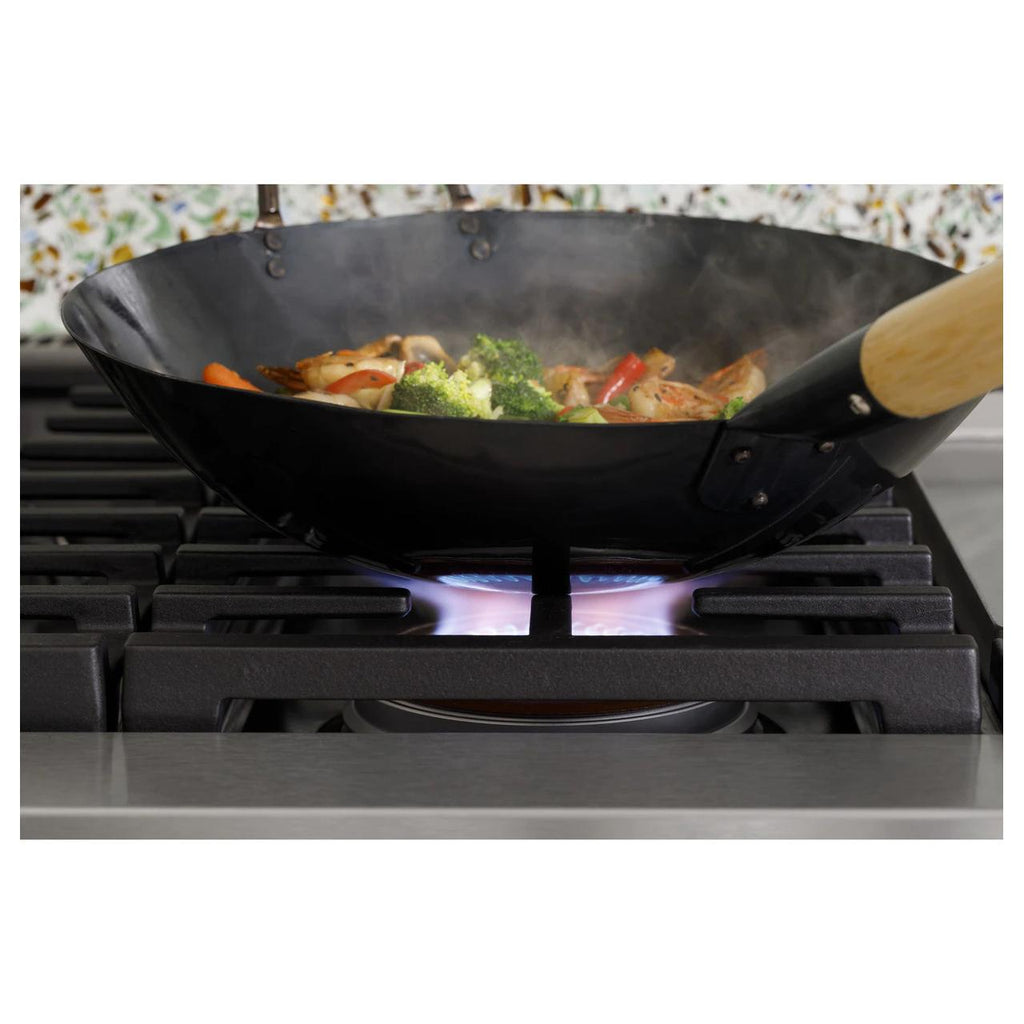

INDUSTRY-LEADING HEAT DISTRIBUTION

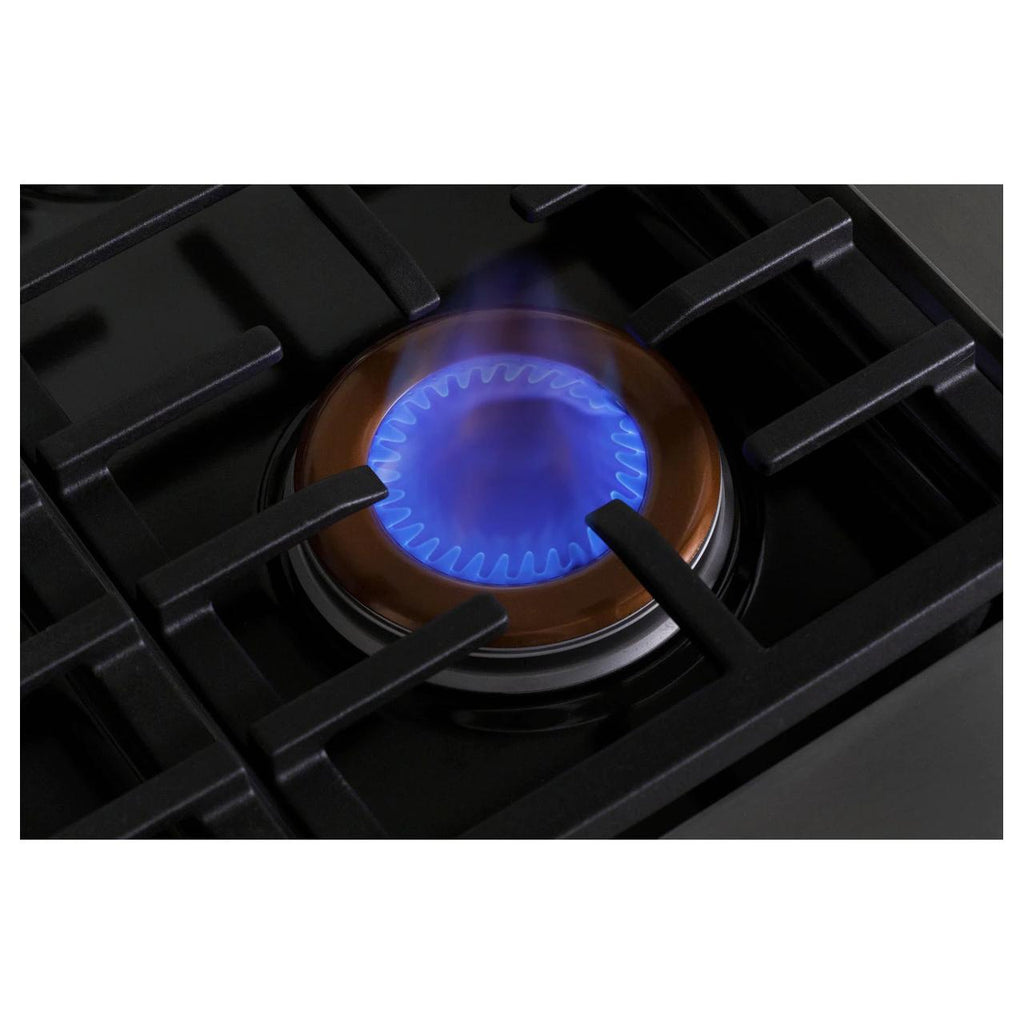

An industry-exclusive Inspiral burner swirls the cooktop flame under cookware to eliminate uneven heating.
MULTI-RING BURNER
A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one.
Specifications
General
Series Name
Commercial-Style
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Auto Self Clean
• Delay Clean Option
• Self-Clean Cool Down Time Display
• Self-Clean with Steam Clean Option (Both Ovens)
• Variable with Delay Clean Option
• Automatic Self-Clean Oven Door Lock
• Dishwasher Safe Knobs
• Delay Clean Option
• Self-Clean Cool Down Time Display
• Self-Clean with Steam Clean Option (Both Ovens)
• Variable with Delay Clean Option
• Automatic Self-Clean Oven Door Lock
• Dishwasher Safe Knobs
Cooktop
Burners/Elements
6
Burners/Elements Output
• Burner - Left Front: 21,000 BTU Multi-ring Burner
• Burner - Left Rear: 18,000 BTU
• Burner - Right Front: 10,000 BTU
• Burner - Right Rear: 18,000 BTU
• Burner - Center Front: 12,000 BTU
• Burner - Center Rear: 12,000 BTU
• Griddle: 18,000 BTU
• Burner - Left Rear: 18,000 BTU
• Burner - Right Front: 10,000 BTU
• Burner - Right Rear: 18,000 BTU
• Burner - Center Front: 12,000 BTU
• Burner - Center Rear: 12,000 BTU
• Griddle: 18,000 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
• Total: 8.25 cu. ft.
• Large Oven: 5.75 cu. ft.
• Small Oven: 2.5 cu. ft.
• Large Oven: 5.75 cu. ft.
• Small Oven: 2.5 cu. ft.
Number of Ovens
Double
Programs
• Bake
• Broil
• Convection Bake
• Convection Broil
• Convection Roast
• Proof
• Oven Temperature Probe
• Warming
• Broil
• Convection Bake
• Convection Broil
• Convection Roast
• Proof
• Oven Temperature Probe
• Warming
Features
Technologies
• Chef Connect
• True European Convection Reverse Air Convection
• True Temp System
• Built-in WiFi Connection with the SmartHQ™ app
• Connected Integrations: Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Sonos, The Google Assistant
• WiFi Enabled Features Remote Oven Control: Remote Notifications, Clock Sync, Scan-to-Cook, Voice Control, Precision Cooking Modes, No Preheat Air Fry, Meat Probe (App-Based func), Clock Set
• True European Convection Reverse Air Convection
• True Temp System
• Built-in WiFi Connection with the SmartHQ™ app
• Connected Integrations: Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Sonos, The Google Assistant
• WiFi Enabled Features Remote Oven Control: Remote Notifications, Clock Sync, Scan-to-Cook, Voice Control, Precision Cooking Modes, No Preheat Air Fry, Meat Probe (App-Based func), Clock Set
Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Heavy Cast Edge-to-Edge Continuous Grates
• Ignition System: Electronic with Auto Reignition
• Big Clear View Oven Window

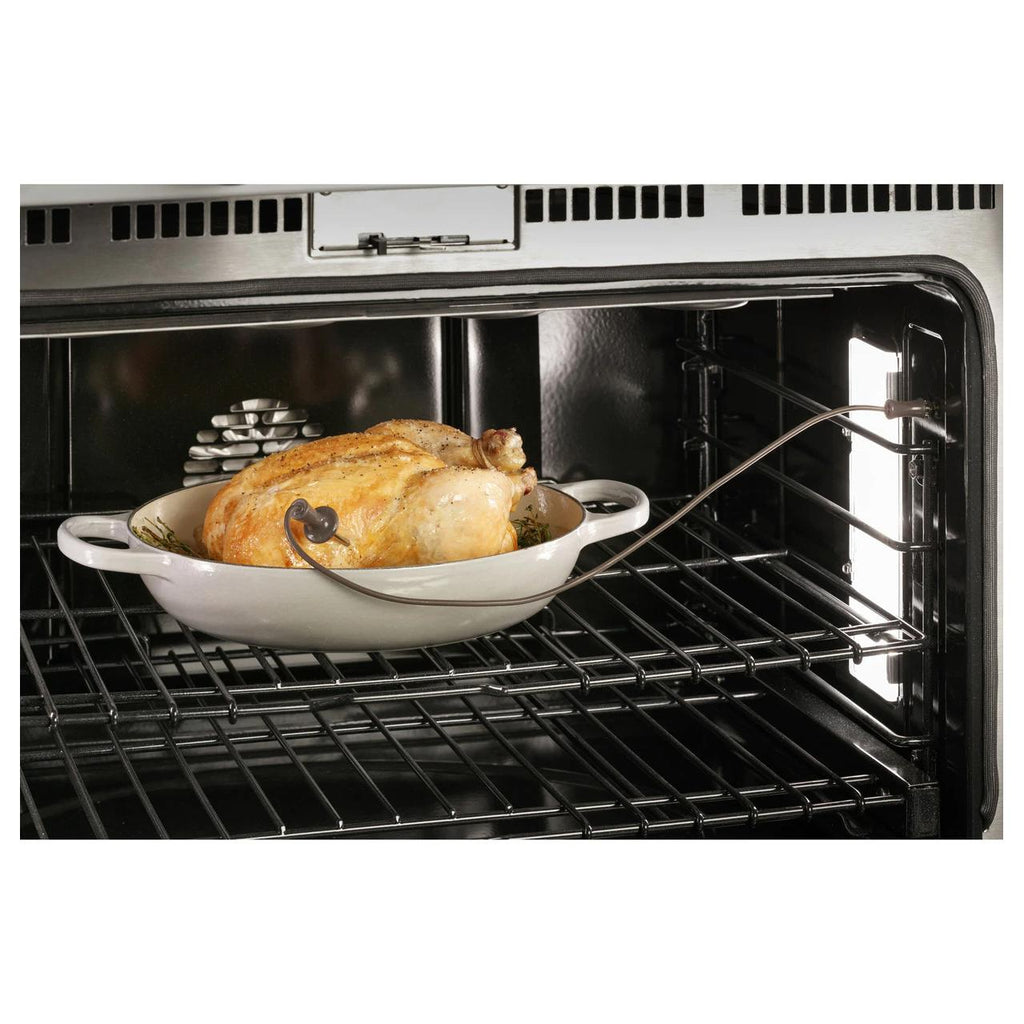

• Temperature Probe
• In-Oven Broiling
• Electronic Timer
• Auto Oven Shut-Off
• Audible Preheat Signal
• Cooktop Surface: Porcelain-Enamel
• Control Location: Front controls
• Interior Halogen Light: 6 (Large Oven), 3 (Lower Oven)
• Rack Positions: 5 (Large Oven), 4 (Lower Oven)
• Self-Clean Flat Oven Racks: 2 (Large Oven), 1 (Lower Oven)
• Self-Clean Extension Rack: 1 (in each)
• 4 Leveling Legs
• Ignition System: Electronic with Auto Reignition
• Big Clear View Oven Window
• Temperature Probe
• In-Oven Broiling
• Electronic Timer
• Auto Oven Shut-Off
• Audible Preheat Signal
• Cooktop Surface: Porcelain-Enamel
• Control Location: Front controls
• Interior Halogen Light: 6 (Large Oven), 3 (Lower Oven)
• Rack Positions: 5 (Large Oven), 4 (Lower Oven)
• Self-Clean Flat Oven Racks: 2 (Large Oven), 1 (Lower Oven)
• Self-Clean Extension Rack: 1 (in each)
• 4 Leveling Legs
Electrical Information
Information
• Volts/Hertz/Amps: 240V; 60Hz: 50A
• Bake/Broil Wattage - Main Oven: 2700/4000W
• Convection Wattage: 2500W
• Bake/Broil Wattage - Main Oven: 2700/4000W
• Convection Wattage: 2500W
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• CXPR8HKPTSS: Brushed Stainless Steel Kit - 2 handle, 9 knobs
• LP Conversion Kit
• Power Cord
• LP Conversion Kit
• Power Cord
Optional
• CXPR8HKPTBZ: Brushed Bronze Kit - 2 handle, 9 knobs
• CXPR8HKPTBT: Brushed Black Kit - 2 handle, 9 knobs
• CXPR8HKPTCU: Brushed Copper Kit - 2 handle, 9 knobs
• CXPR8HKPTFB: Flat Black Kit - 2 handle, 9 knobs
• CXMB3H3PNCG: Brushed Brass Kit - 3 handles
• CXPR8HKPTBT: Brushed Black Kit - 2 handle, 9 knobs
• CXPR8HKPTCU: Brushed Copper Kit - 2 handle, 9 knobs
• CXPR8HKPTFB: Flat Black Kit - 2 handle, 9 knobs
• CXMB3H3PNCG: Brushed Brass Kit - 3 handles
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.60 cm
Height
35.25 inch(es) / 89.54 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
28.25 inch(es) / 71.76 cm
Weight
576 lb(s) / 261.27 kg
Additional Dimensions
• Depth with Door Open: 43 7/8"
• Height to Cooking Surface: 35-1/4" - 36-3/4"
• Large Oven Interior Dimensions (W x H x D): 28-1/4" x 14" x 20-3/8"
• Small Oven Interior Dimensions (W x H x D): 12-1/4" x 16-3/8" x 21-3/8"
• Height to Cooking Surface: 35-1/4" - 36-3/4"
• Large Oven Interior Dimensions (W x H x D): 28-1/4" x 14" x 20-3/8"
• Small Oven Interior Dimensions (W x H x D): 12-1/4" x 16-3/8" x 21-3/8"
Shipping Dimensions
Width
50.5 inch(es) / 128.27 cm
Height
47 inch(es) / 119.38 cm
Depth
34.7 inch(es) / 88.14 cm
Weight
671.99 lb(s) / 304.81 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
084691851424
