Features
EDGE-TO-EDGE
Enjoy the convenience of a larger cooking surface and easy cleaning with the GE edge-to-edge cooktop.
WIFI CONNECT
Control your oven with your smart device or simply your voice using WiFi Connect.

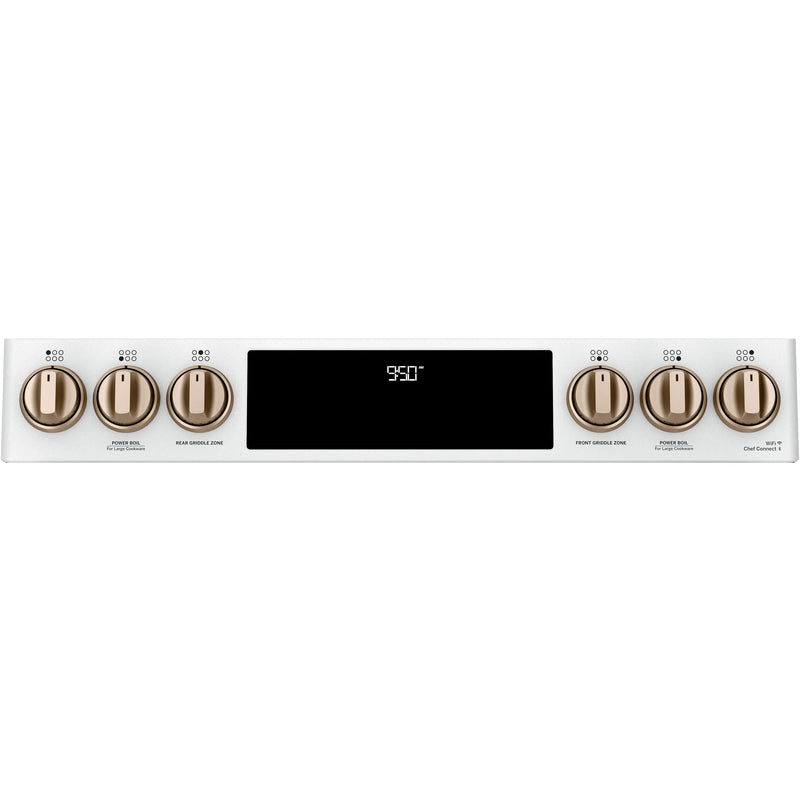

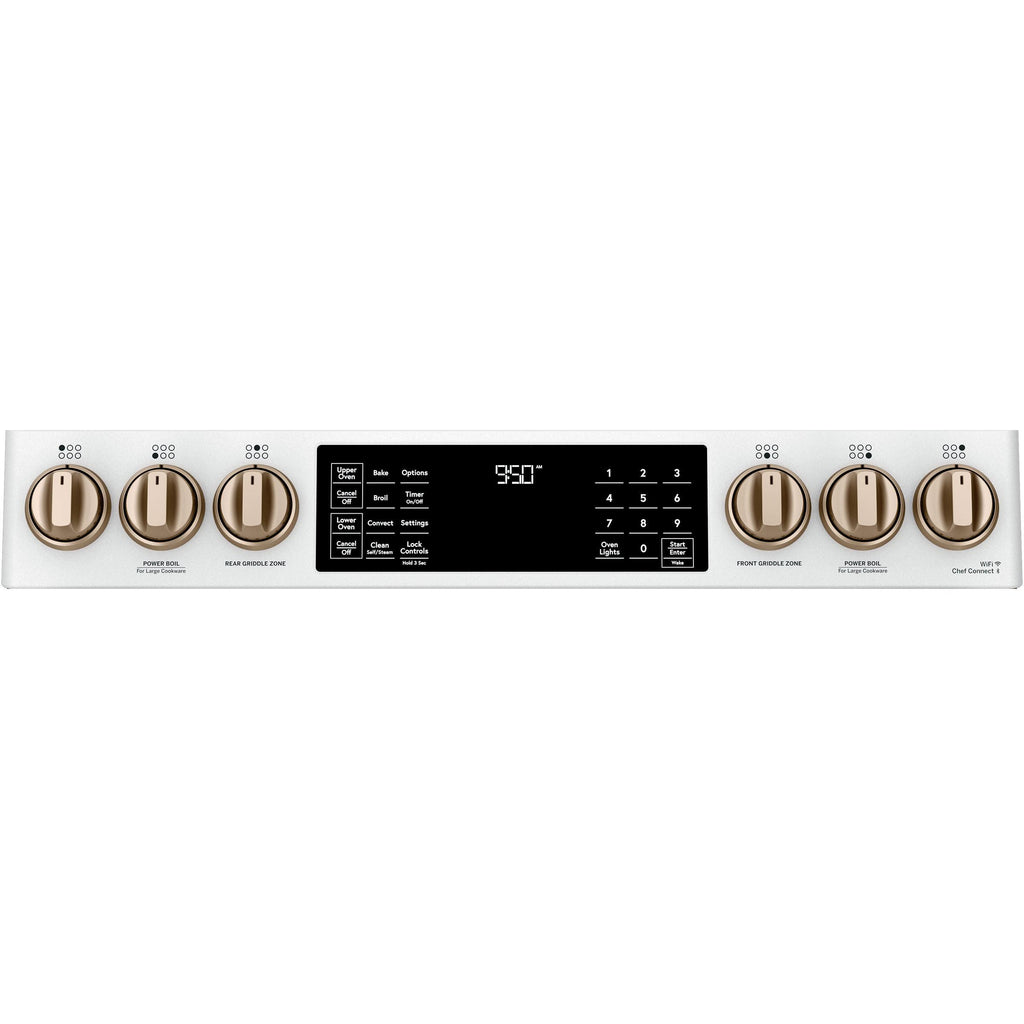

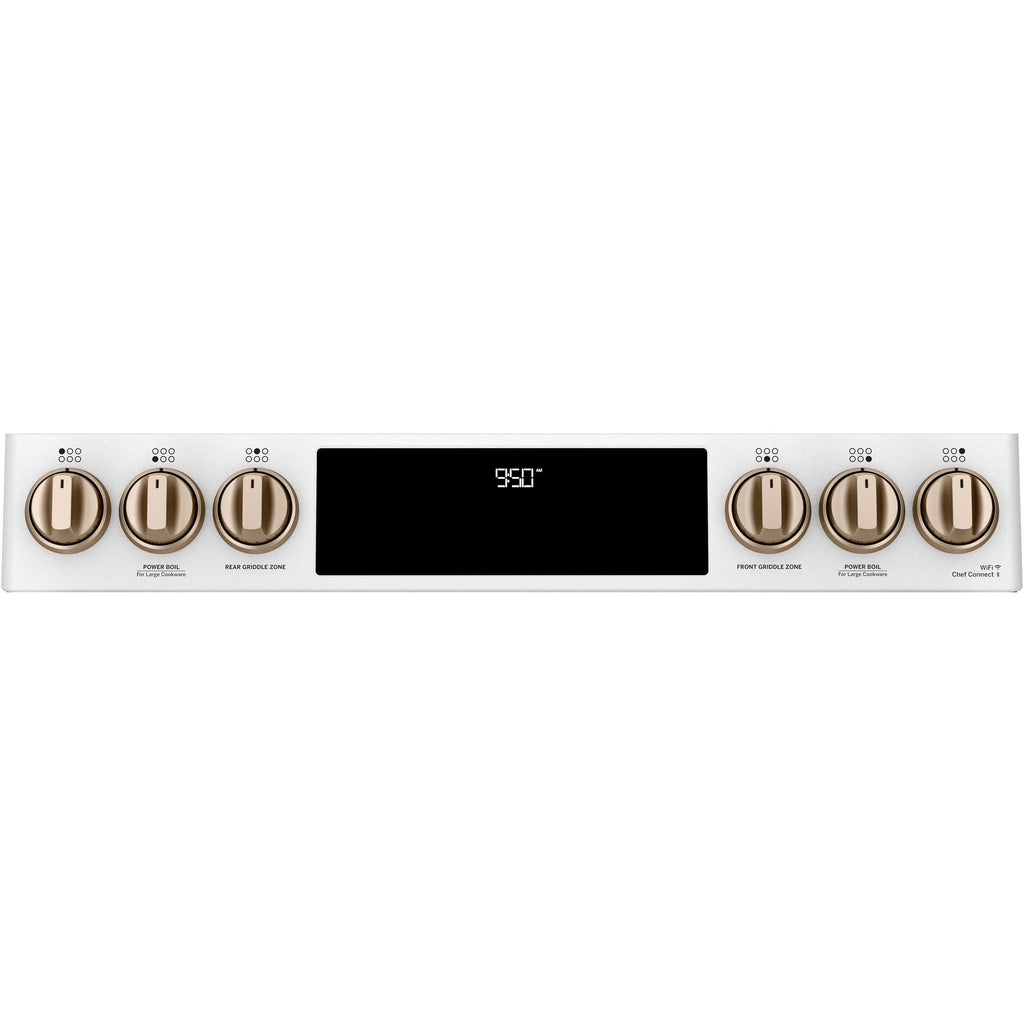

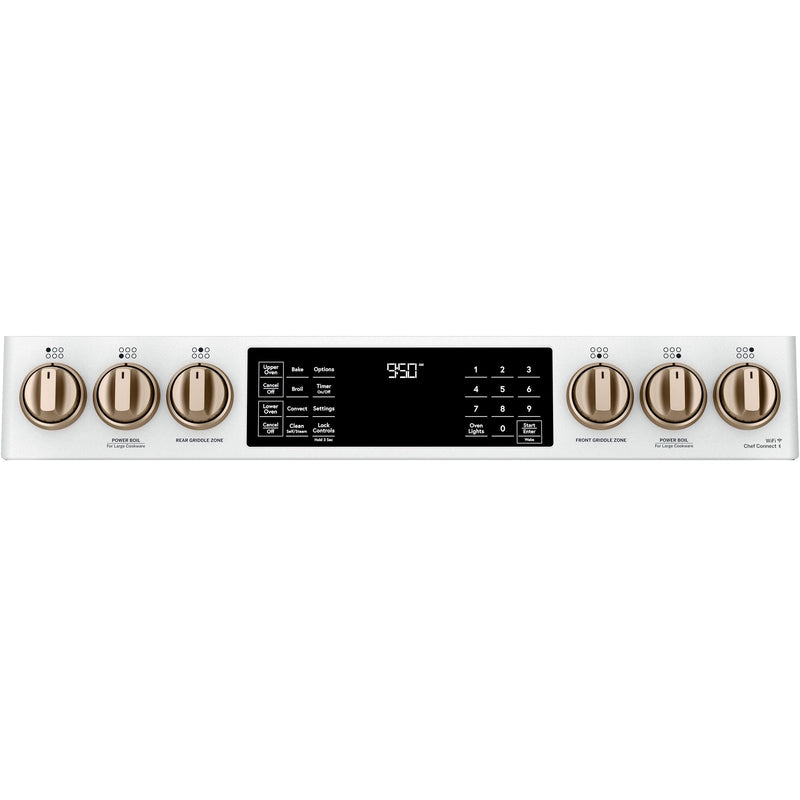

LED CONTROL PANEL
Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted.
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Slide-in
Color
White
Manufacturer Color
Matte White
Appliance Care
Self-Clean with Steam Clean Option

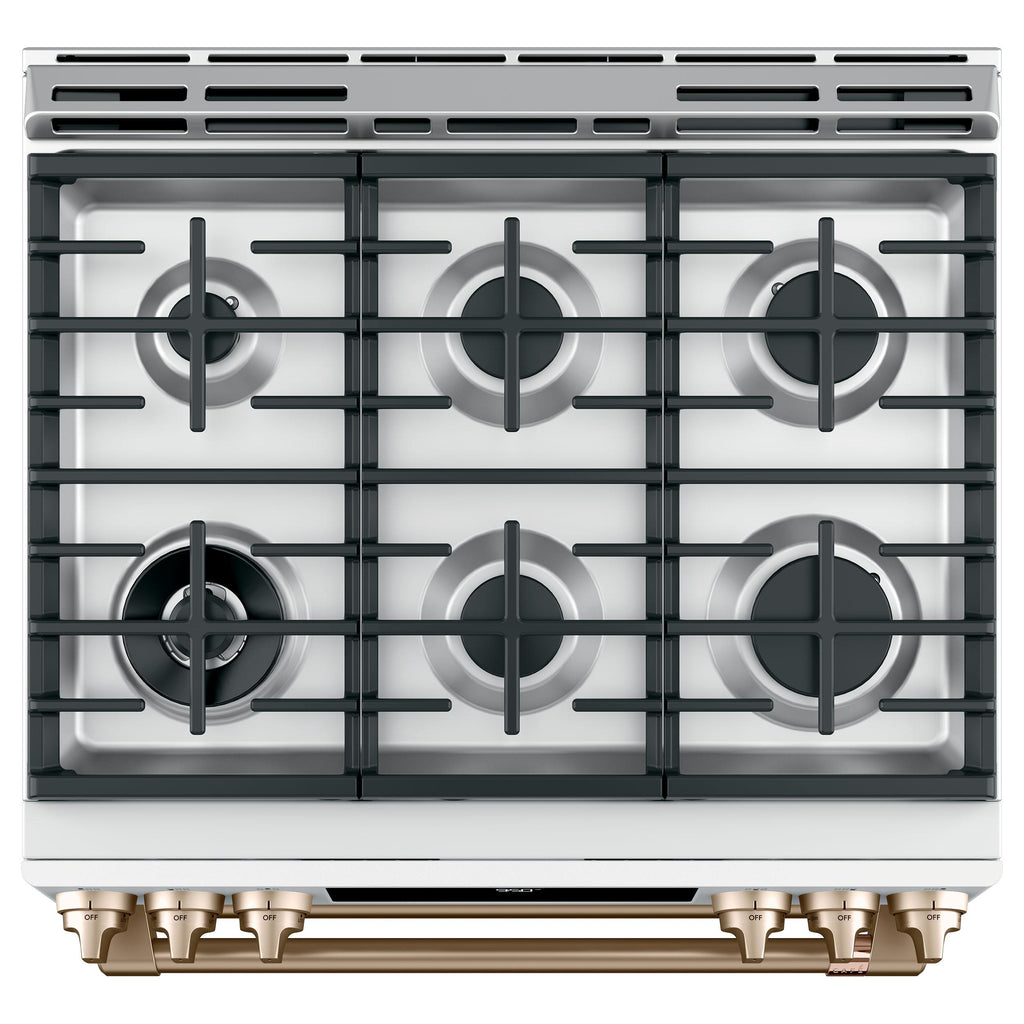

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Burner: 21,000 BTU Tri-ring
• Left Rear: 5,000 BTU Precise Simmer
• Right Front: 15,000 BTU
• Right Rear: 12,000 BTU
• Center: 9,500 BTU Front / 9,500 BTU Rear
• Left Rear: 5,000 BTU Precise Simmer
• Right Front: 15,000 BTU
• Right Rear: 12,000 BTU
• Center: 9,500 BTU Front / 9,500 BTU Rear
Burners
Sealed
Oven
Capacity (cu. ft.)
• Total Capacity: 7.0 cu.ft.
• Upper Oven: 2.7 cu.ft.
• Lower Oven: 4.3 cu.ft.
• Upper Oven: 2.7 cu.ft.
• Lower Oven: 4.3 cu.ft.
Number of Ovens
Double
Programs
• Convection Bake
• Convection Roast
• Convection Roast
Features
Technologies
• True European Precise Air Reversing
• WiFi Connect
• Amazon Alexa
• DiGiorno
• Drop
• IFTTT
• Innit
• Nest
• The Google Assistant
• Chef Connect
• WiFi Connect
• Amazon Alexa
• DiGiorno
• Drop
• IFTTT
• Innit
• Nest
• The Google Assistant
• Chef Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Digital Temperature Display
• Glass Touch
• Digital Oven Control
• Dishwasher Safe Knobs
• Ignition System: Electronic with Auto Reignition
• Audible Preheat Signal
• Auto Oven Shut-Off
• Auto Self Clean
• Automatic Oven Timer (Time Bake)
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Self-Clean Cool Down Time Display
• Temperature Probe
• Big Clear View Oven Window
• Matte Black Frameless Oven Door
• Bake Wattage: 2650W Upper / 2650W Lower
• Broiler Wattage: 3000W Upper / 3600W Lower
• Convection Wattage: 2500W
• Glass Touch
• Digital Oven Control
• Dishwasher Safe Knobs
• Ignition System: Electronic with Auto Reignition
• Audible Preheat Signal
• Auto Oven Shut-Off
• Auto Self Clean
• Automatic Oven Timer (Time Bake)
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Self-Clean Cool Down Time Display
• Temperature Probe
• Big Clear View Oven Window
• Matte Black Frameless Oven Door
• Bake Wattage: 2650W Upper / 2650W Lower
• Broiler Wattage: 3000W Upper / 3600W Lower
• Convection Wattage: 2500W
Electrical Information
Information
• 208 V / 240 V
• 60 Hz
• 30 A
• 60 Hz
• 30 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
270.99 lb(s) / 122.92 kg
Additional Dimensions
• Cabinet Opening: 30"
• Depth with Door Open: 43 7/8"
• Height to Top of Rear Vent Trim: 37 3/8"
• Height to Cooking Surface: 36 1/4" +/- 1/4"
• Overall Depth: 29 1/2"
• Oven Interior Dimensions (W x H x D): 24" x 10-1/8" x 19-1/8" Upper; 24" x 15" x 20-5/8" Lower
• Depth with Door Open: 43 7/8"
• Height to Top of Rear Vent Trim: 37 3/8"
• Height to Cooking Surface: 36 1/4" +/- 1/4"
• Overall Depth: 29 1/2"
• Oven Interior Dimensions (W x H x D): 24" x 10-1/8" x 19-1/8" Upper; 24" x 15" x 20-5/8" Lower
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
291.01 lb(s) / 132.00 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691834670
