Features
WIFI CONNECT
Control your oven with your smart device or simply your voice using WiFi Connect.

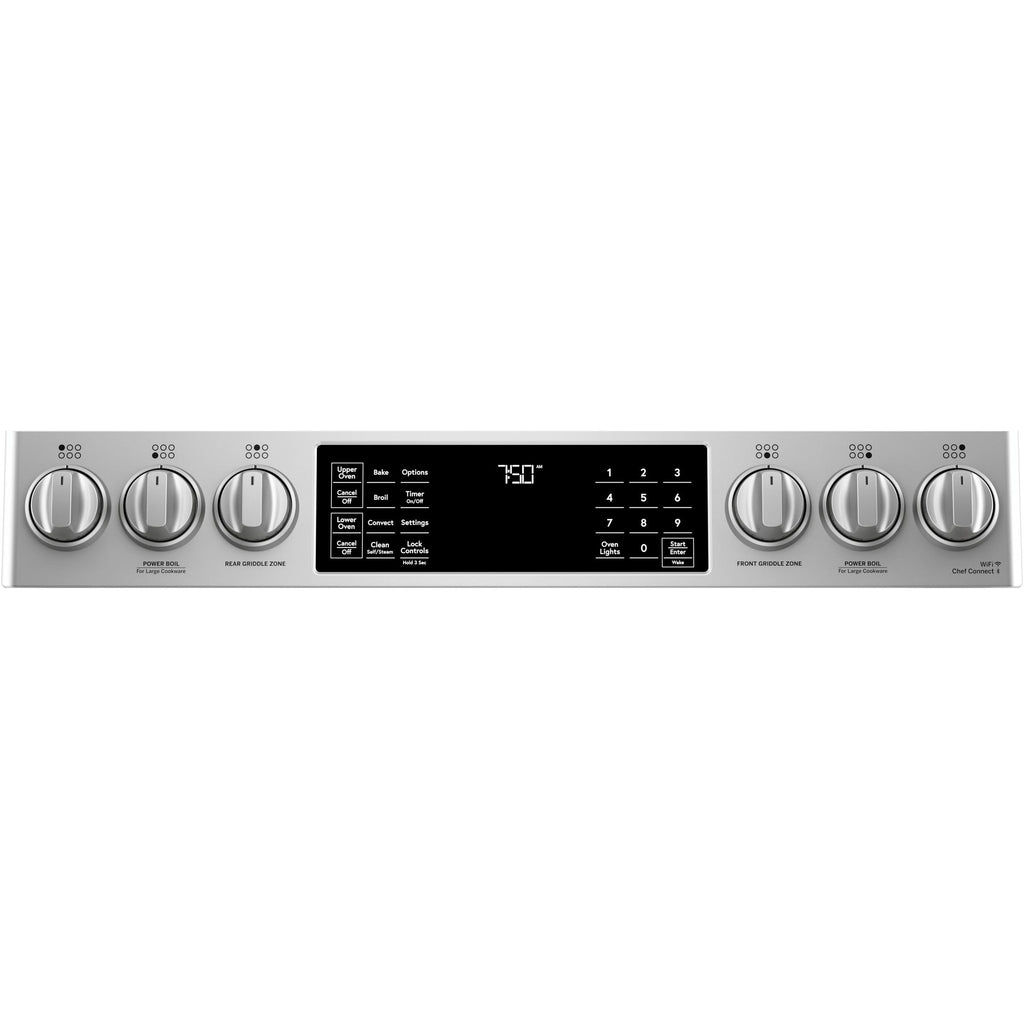

LED CONTROL PANEL
Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted.
CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.
TRUE EUROPEAN CONVECTION
The European or "true" convection system that has a dedicated third dual loop heating element surrounding the convection fan, which provides even heating, even browning and superior baking.

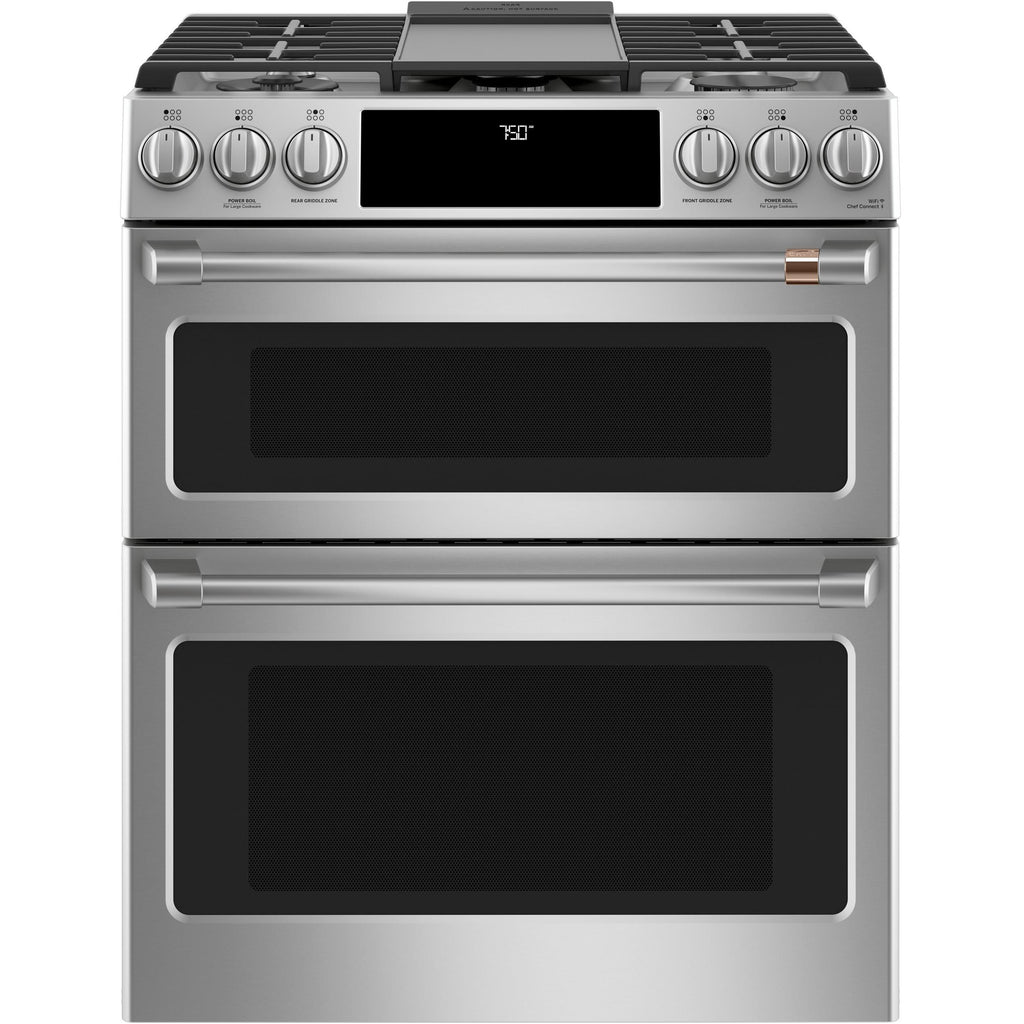

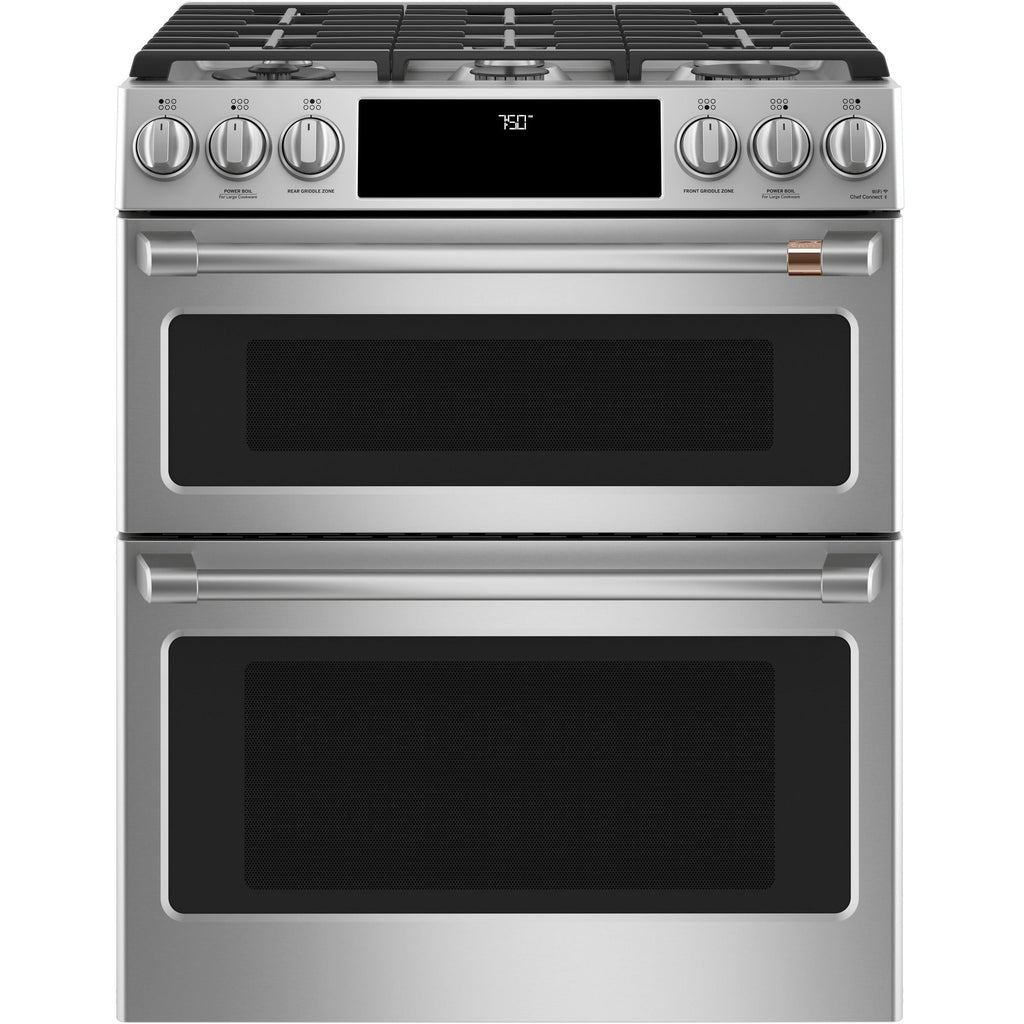

6.7 CU. FT. DOUBLE OVEN RANGE WITH TRUE EUROPEAN CONVECTION WITH PRECISE AIR

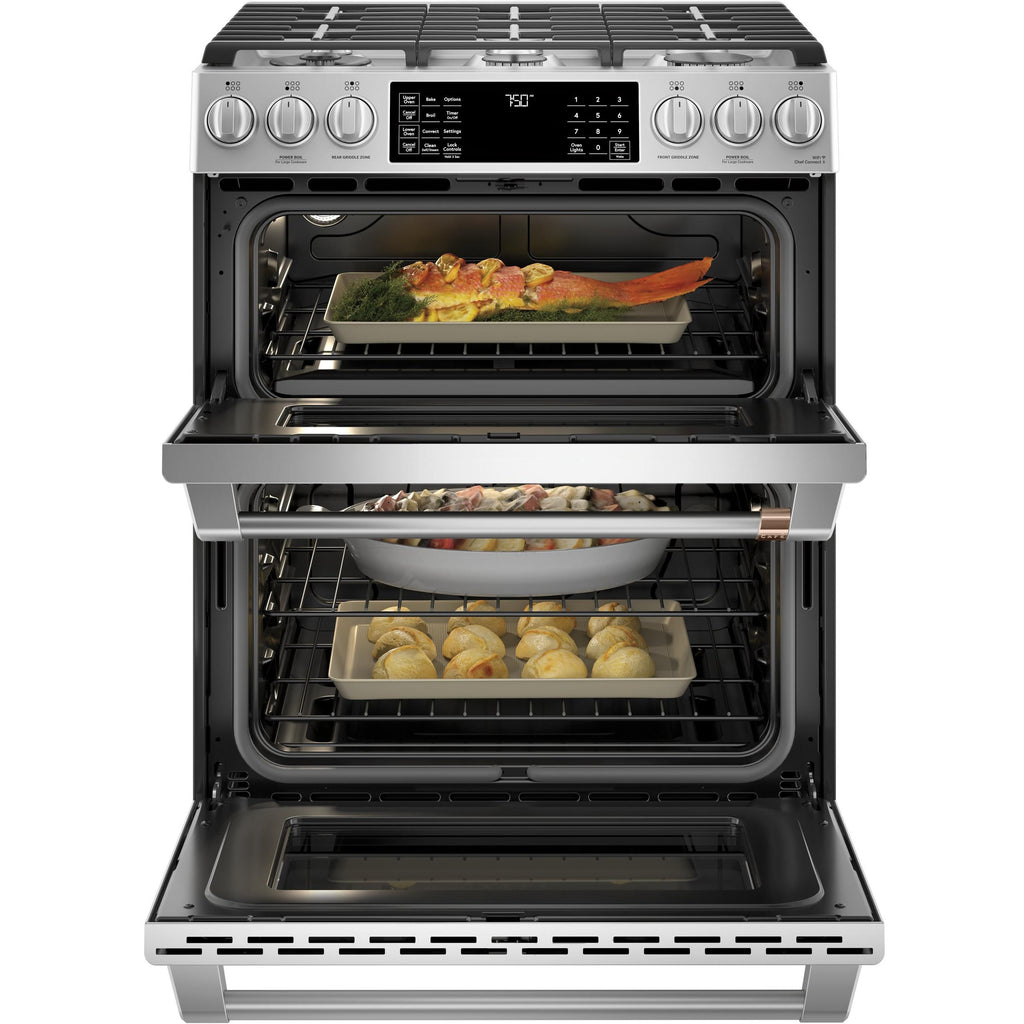

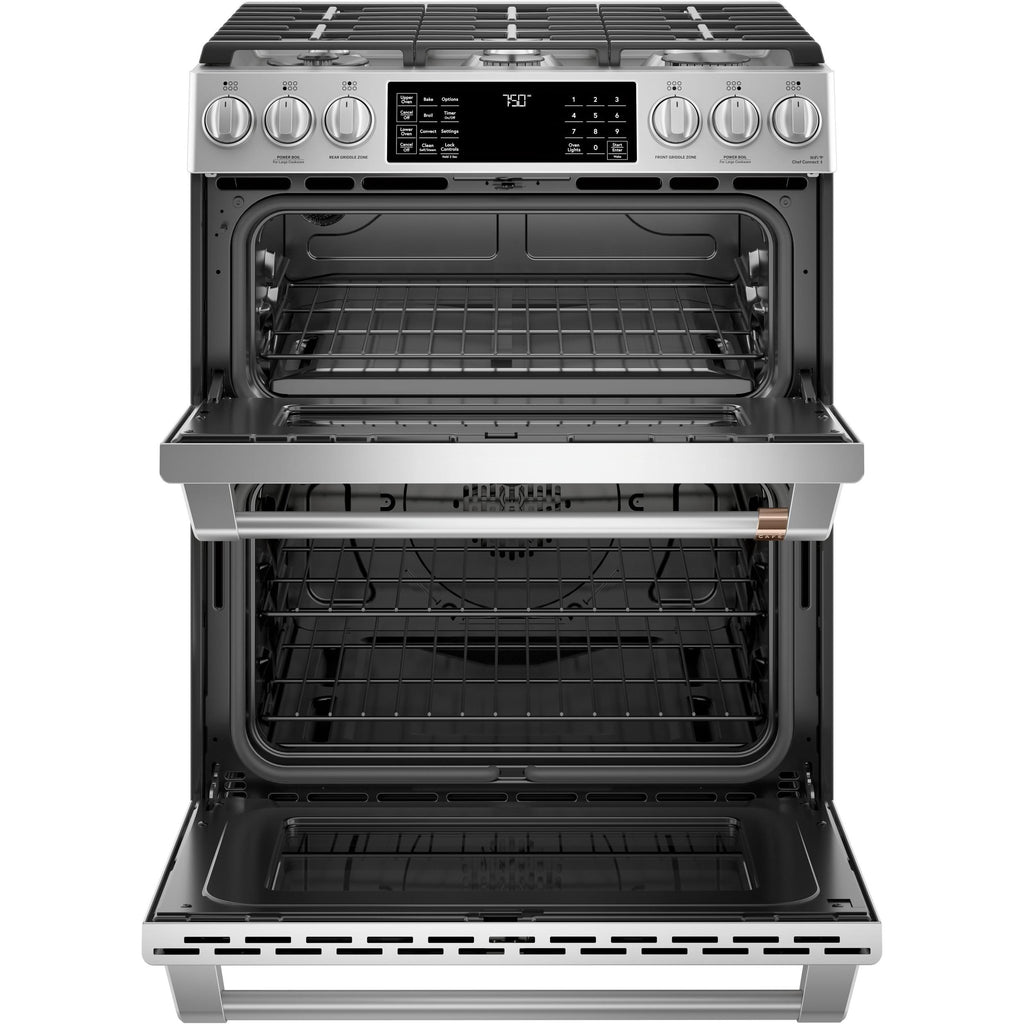

From everyday gourmet meals to large dinner parties, achieve impressive results with two independent ovens with a total capacity of 6.7 cu. ft. for true cooking flexibility, along with the accurate heat circulation of True European Convection with Precise Air in the lower oven.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean with Steam Clean Option
Cooktop
Burners/Elements
6
Burners/Elements Output

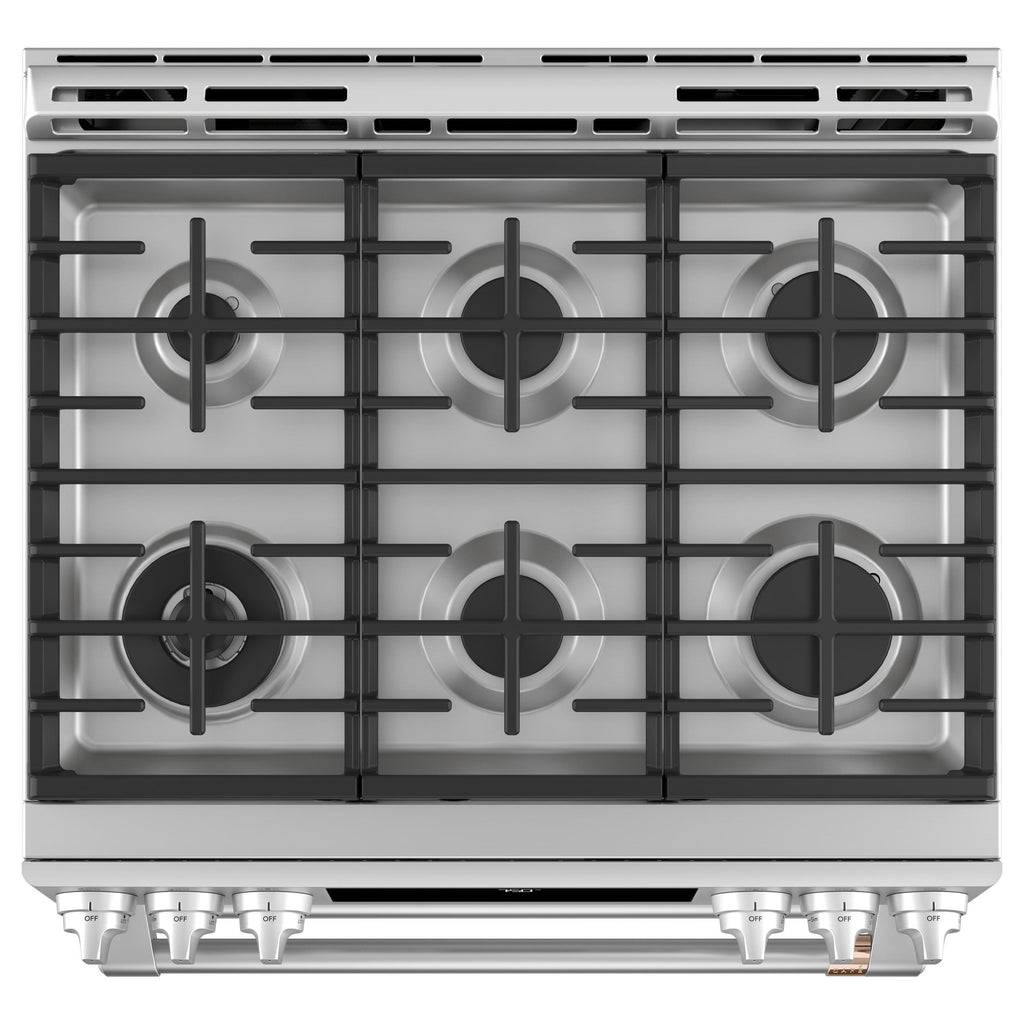

• Left Front Burner: 21,000 BTU Tri-Ring Burner
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Front Burner: 9,500 BTU
• Center Rear Burner: 9,500 BTU
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Front Burner: 9,500 BTU
• Center Rear Burner: 9,500 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
• Total Capacity: 6.7 cu.ft.
• Upper Oven: 2.4 cu.ft.
• Lower Oven: 4.3 cu.ft.
• Upper Oven: 2.4 cu.ft.
• Lower Oven: 4.3 cu.ft.
Number of Ovens
Double
Programs
• Convection Bake
• Convection Roast
• Convection Roast
Features
Technologies
• True European Convection with Precise Air
• Traditional Upper; Convection Lower Cooking Technology
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
• Traditional Upper; Convection Lower Cooking Technology
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Heavy-Cast Edge-to-Edge Grates
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock And Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down
• Time Display
• Dishwasher Safe Knobs
• 2 Self-Clean Flat Oven Racks (Lower)
• 6 Rack Positions
• Electronic Ignition System
• 4 Leveling Legs
• Big Clear View Oven Window
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock And Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down
• Time Display
• Dishwasher Safe Knobs
• 2 Self-Clean Flat Oven Racks (Lower)
• 6 Rack Positions
• Electronic Ignition System
• 4 Leveling Legs
• Big Clear View Oven Window
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• LP conversion Kit
• Integrated Cast Iron Griddle
• Integrated Cast Iron Griddle
Optional
• Integrated Cast Iron Grill: JXCGRILL1
• Trim Kit: JXFILLR1DD
• Brushed Bronze; 2 Handles, 6 Knobs: CXFCGHKPMBZ
• Brushed Black; 2 Handles, 6 Knobs: CXFCGHKPMBT
• Brushed Copper; 2 Handles, 6 Knobs: CXFCGHKPMCU
• Trim Kit: JXFILLR1DD
• Brushed Bronze; 2 Handles, 6 Knobs: CXFCGHKPMBZ
• Brushed Black; 2 Handles, 6 Knobs: CXFCGHKPMBT
• Brushed Copper; 2 Handles, 6 Knobs: CXFCGHKPMCU
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
236 lb(s) / 107.05 kg
Additional Dimensions
• Depth with Door Open: 43-7/8"
• Height to Top of Rear Vent Trim: 37-3/8"
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Upper Oven Interior Dimensions (W x H x D): 24" x 9-1/8" x 19-1/8"
• Lower Oven Interior Dimensions (W x H x D): 24" x 15" x 20-5/8"
• Height to Top of Rear Vent Trim: 37-3/8"
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Upper Oven Interior Dimensions (W x H x D): 24" x 9-1/8" x 19-1/8"
• Lower Oven Interior Dimensions (W x H x D): 24" x 15" x 20-5/8"
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
256 lb(s) / 116.12 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691832461
