Features
EDGE-TO-EDGE
Enjoy the convenience of a larger cooking surface and easy cleaning with the GE edge-to-edge cooktop.
WIFI CONNECT
Control your oven with your smart device or simply your voice using WiFi Connect.
21,000 BTU TRI-RING BURNER
Versatile burner creates intense heat perfect for searing, frying and sautéing.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Black
Manufacturer Color
Matte Black
Appliance Care
• Self-clean with steam clean option
• Auto self clean
• Variable with delay clean option
• Auto self clean
• Variable with delay clean option

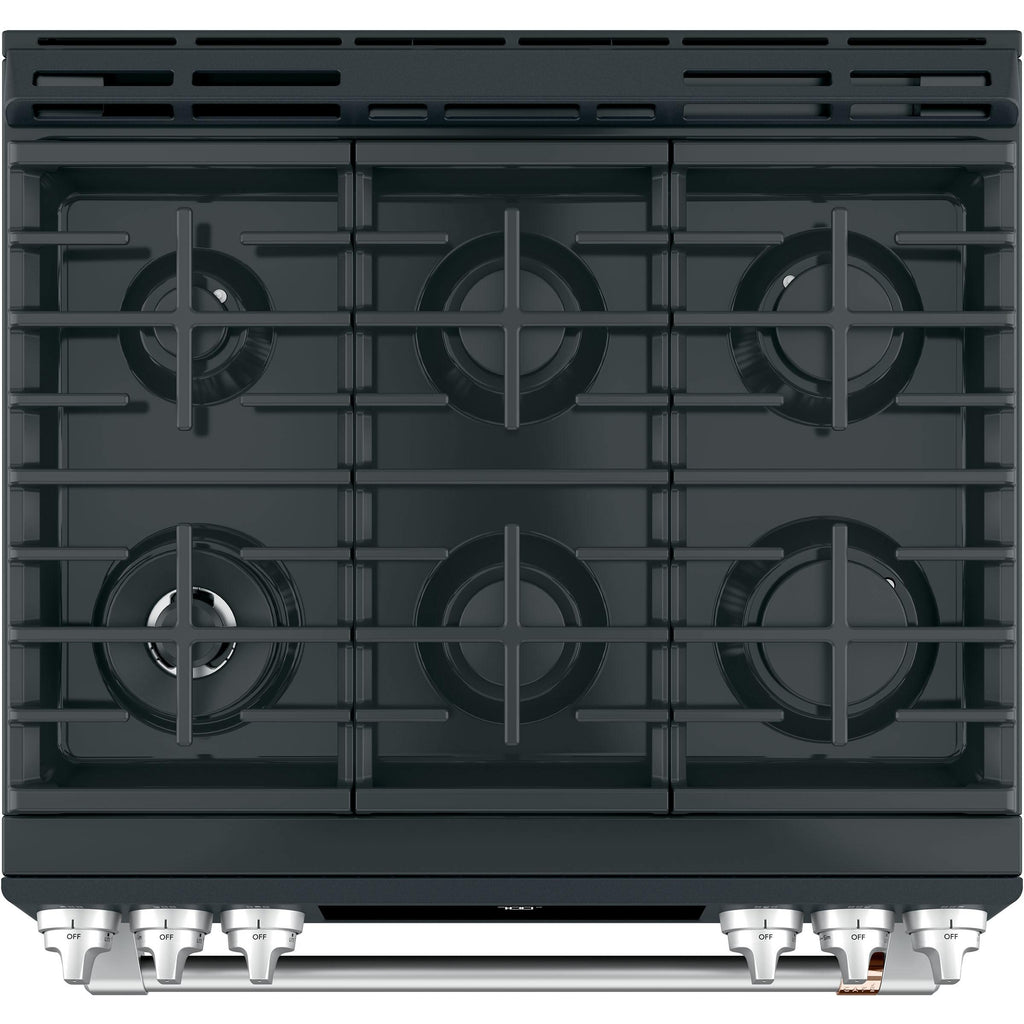

Cooktop
Burners/Elements
6
Burners/Elements Output
• Left front: 21,000 BTU Tri-ring Burner
• Left rear: 5,000 BTU Precise Simmer
• Right front: 15,000 BTU
• Right rear: 12,000 BTU
• Center front: 9,500 BTU
• Center rear: 9,500 BTU
• Left rear: 5,000 BTU Precise Simmer
• Right front: 15,000 BTU
• Right rear: 12,000 BTU
• Center front: 9,500 BTU
• Center rear: 9,500 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
5.6 cu.ft.
Number of Ovens
Single
Programs
• Convection bake
• Convection roast
• Convection roast
Features
Technologies
• True European Convection with Precise Air
• WiFi Connect
• Chef Connect
• WiFi Connect
• Chef Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Audible preheat signal
• Automatic oven timer (Time bake)
• Auto oven shut-off
• Delay bake option (Time bake)
• Delay clean option
• Digipad numeric entry
• Electronic clock and timer
• Front controls
• In-oven broiling
• Temperature probe
• Self-clean cool down
• Time display
• Dishwasher safe knobs
• Heavy-cast edge-to-edge grate
• 2 Self-clean oven racks, 1 roller rack, 6 rack positions
• Electronic ignition system
• 4 Leveling legs
• Big Clear View oven window
• Automatic oven timer (Time bake)
• Auto oven shut-off
• Delay bake option (Time bake)
• Delay clean option
• Digipad numeric entry
• Electronic clock and timer
• Front controls
• In-oven broiling
• Temperature probe
• Self-clean cool down
• Time display
• Dishwasher safe knobs
• Heavy-cast edge-to-edge grate
• 2 Self-clean oven racks, 1 roller rack, 6 rack positions
• Electronic ignition system
• 4 Leveling legs
• Big Clear View oven window

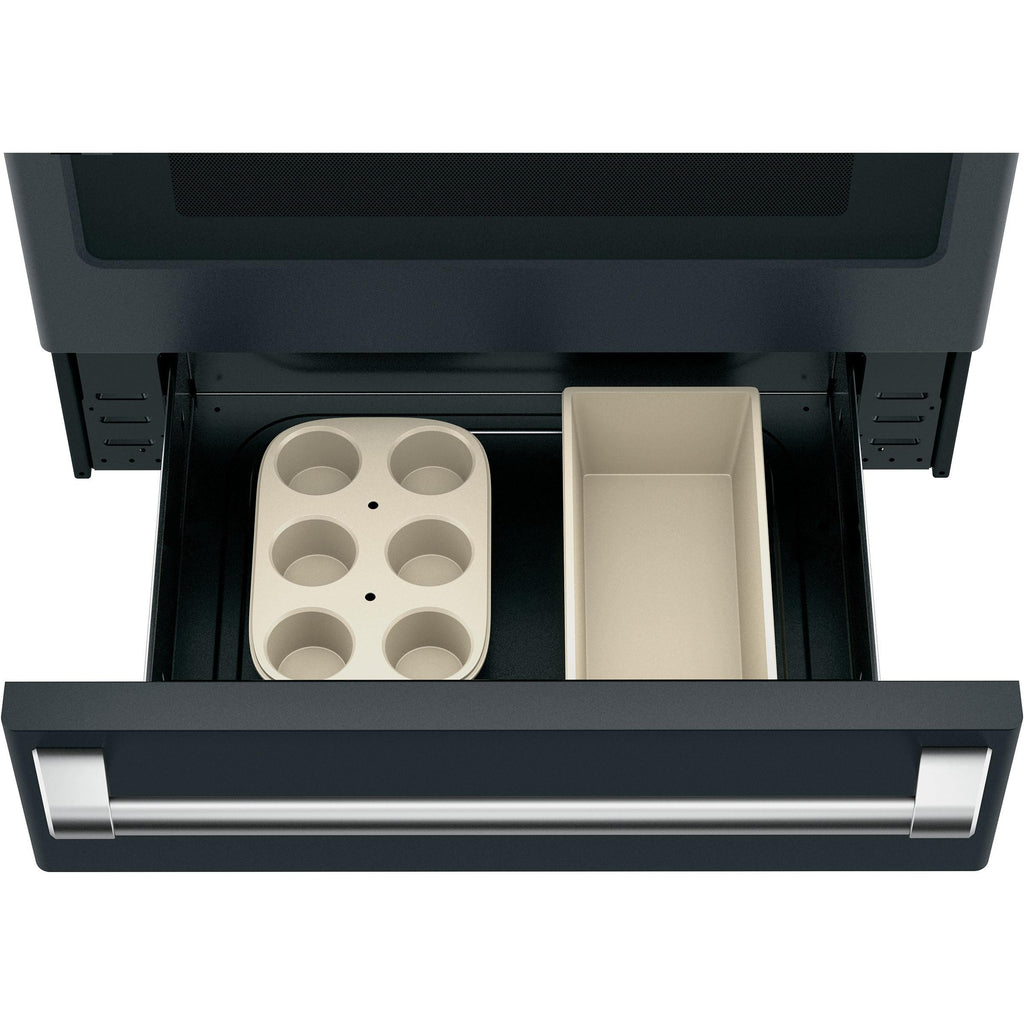

Drawer Features
Warming
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• Center grate
• LP conversion kit
• Integrated cast iron griddle
• LP conversion kit
• Integrated cast iron griddle
Optional
• Integrated cast iron grill: JXCGRILL1
• Trim kit: JXFILLR1DD
• Brushed Bronze; 2 handles, 6 knobs: CXFCGHKPMBZ
• Brushed Black; 2 handles, 6 knobs: CXFCGHKPMBT
• Brushed Copper; 2 handles, 6 knobs: CXFCGHKPMCU
• Trim kit: JXFILLR1DD
• Brushed Bronze; 2 handles, 6 knobs: CXFCGHKPMBZ
• Brushed Black; 2 handles, 6 knobs: CXFCGHKPMBT
• Brushed Copper; 2 handles, 6 knobs: CXFCGHKPMCU
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
223.99 lb(s) / 101.60 kg
Additional Dimensions
• Depth with door open: 47-1/2"
• Height to top of rear vent trim: 37-3/8"
• Height to cooking surface: 36-1/4" +/- 1/4"
• Oven interior dimensions (W x H x D): 24" x 19-1/2" x 20-5/8"
• Height to top of rear vent trim: 37-3/8"
• Height to cooking surface: 36-1/4" +/- 1/4"
• Oven interior dimensions (W x H x D): 24" x 19-1/2" x 20-5/8"
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
291.01 lb(s) / 132.00 kg
Warranty
Warranty
Limited 1-year for entire appliance on parts and labor
UPC
UPC#
084691832454
