Features

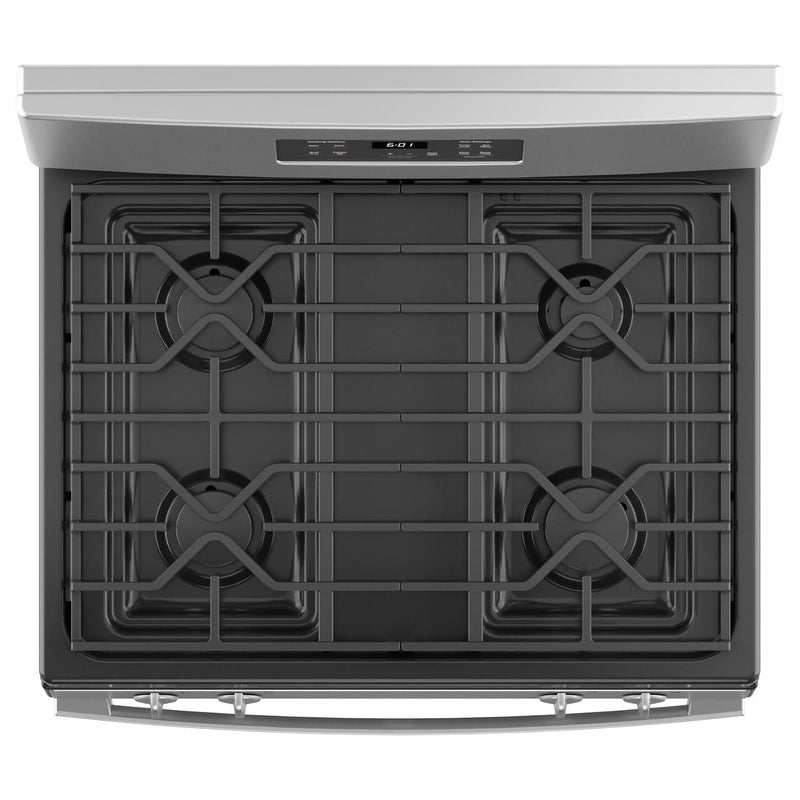

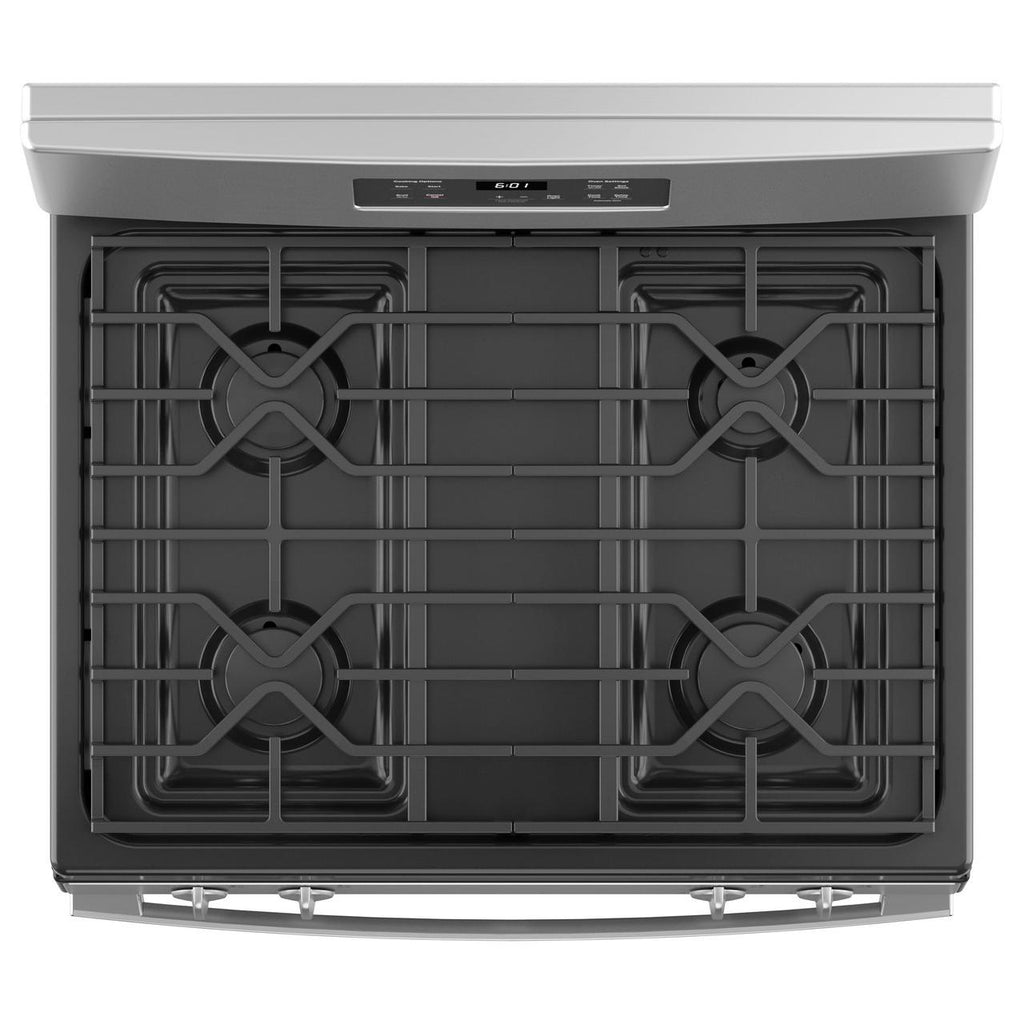

CONTINUOUS GRATES
Continuous grates give you a large cooking space and can handle any cookware.
SEALED COOKTOP BURNERS
Helps contain spills from dripping beneath cooktop for easy clean-up. Sealed gas burner controls let you adjust flame height for various cooking needs.
PRECISE SIMMER BURNER
This burner setting provides low, even heat so delicate dishes don't burn.
Additional Features
ONE-PIECE UPSWEPT COOKTOP
The CleanDesign™ upswept cooktop eliminates crevices so dirt has nowhere to hide. Cleaning is fast and easy.

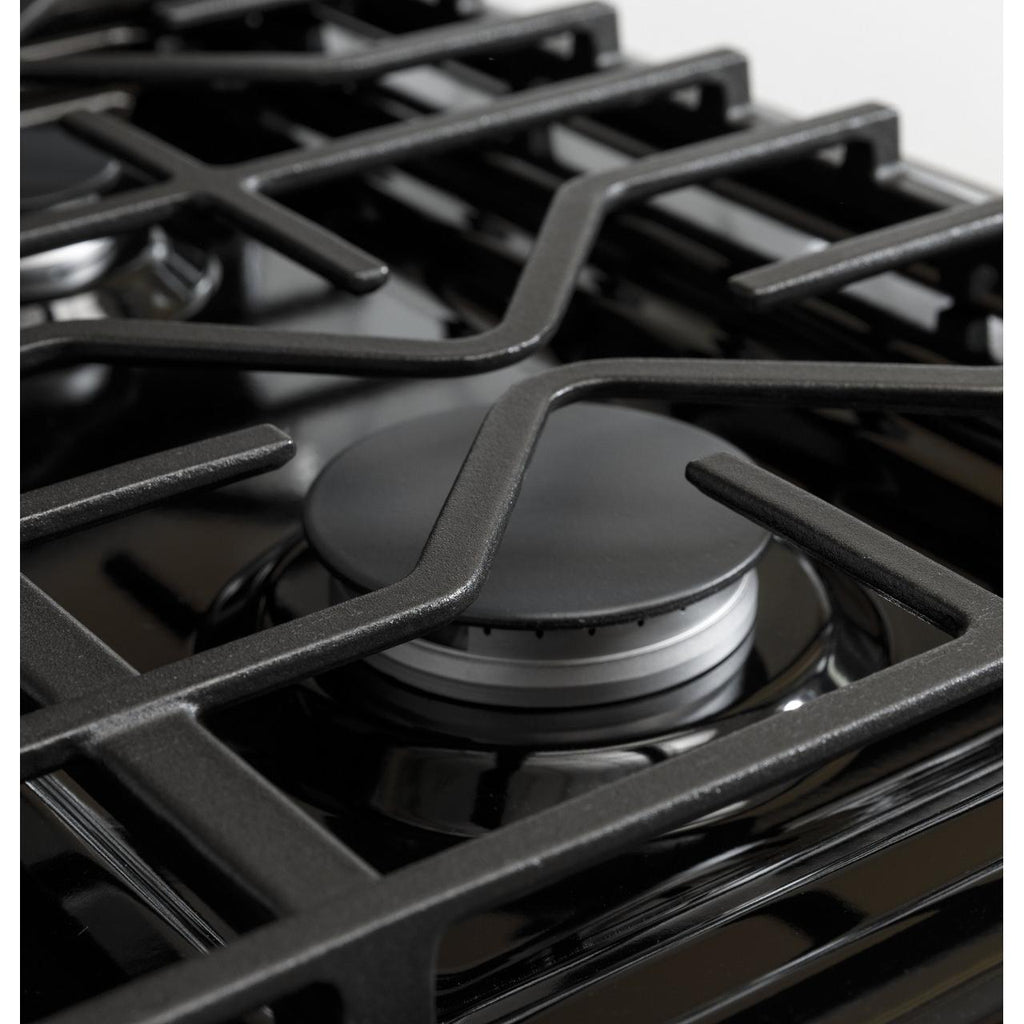

BLACK MATTE STEEL GRATES
The steel grates are coated with a durable, matte finish for a long-lasting and high end look.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Standard Clean
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Burner: 9,500 BTU
• Left Rear Burner: 9,500 BTU
• Right Front Burner: 13,000 BTU
• Right Rear Precise Simmer Burner: 5,000 BTU
• Left Rear Burner: 9,500 BTU
• Right Front Burner: 13,000 BTU
• Right Rear Precise Simmer Burner: 5,000 BTU
Burners
Sealed

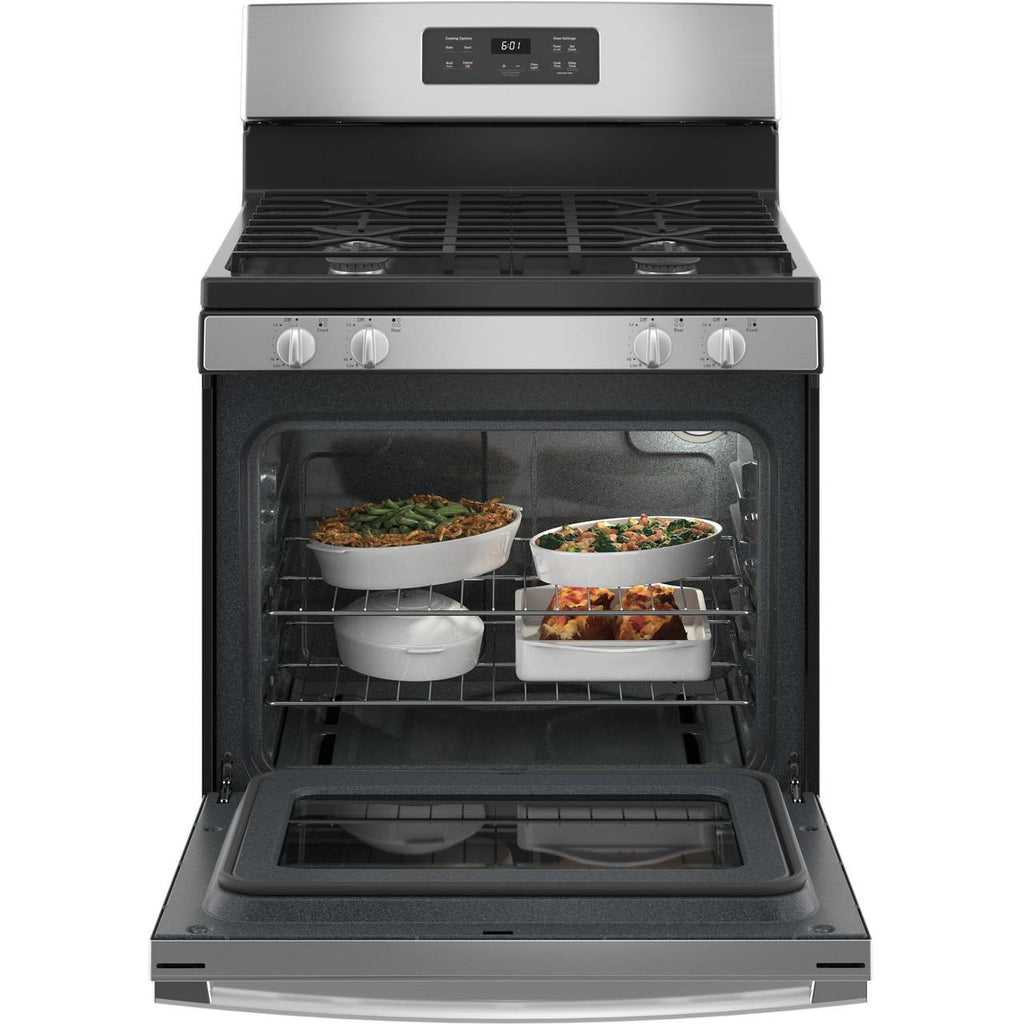

Oven
Capacity (cu. ft.)
4.8 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Broil
Features
Control Lock
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 16.0 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 18.0 Bake / 18.0 Broiler
• Top Burner BTU Rating - LP (000's BTU's) (1) 12.0; (2) 9.5; (1) 5.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 13.0; (2) 9.5; (1) 5.0
• One-Piece Upswept Porcelain-Enamel Cooktop
• Heavy Steel Grates
• Audible Preheat Signal
• Auto Oven Shut-Off
• Certified Sabbath Mode
• Delay Bake Option
• Electronic Clock and Timer
• Hi / Low Broil

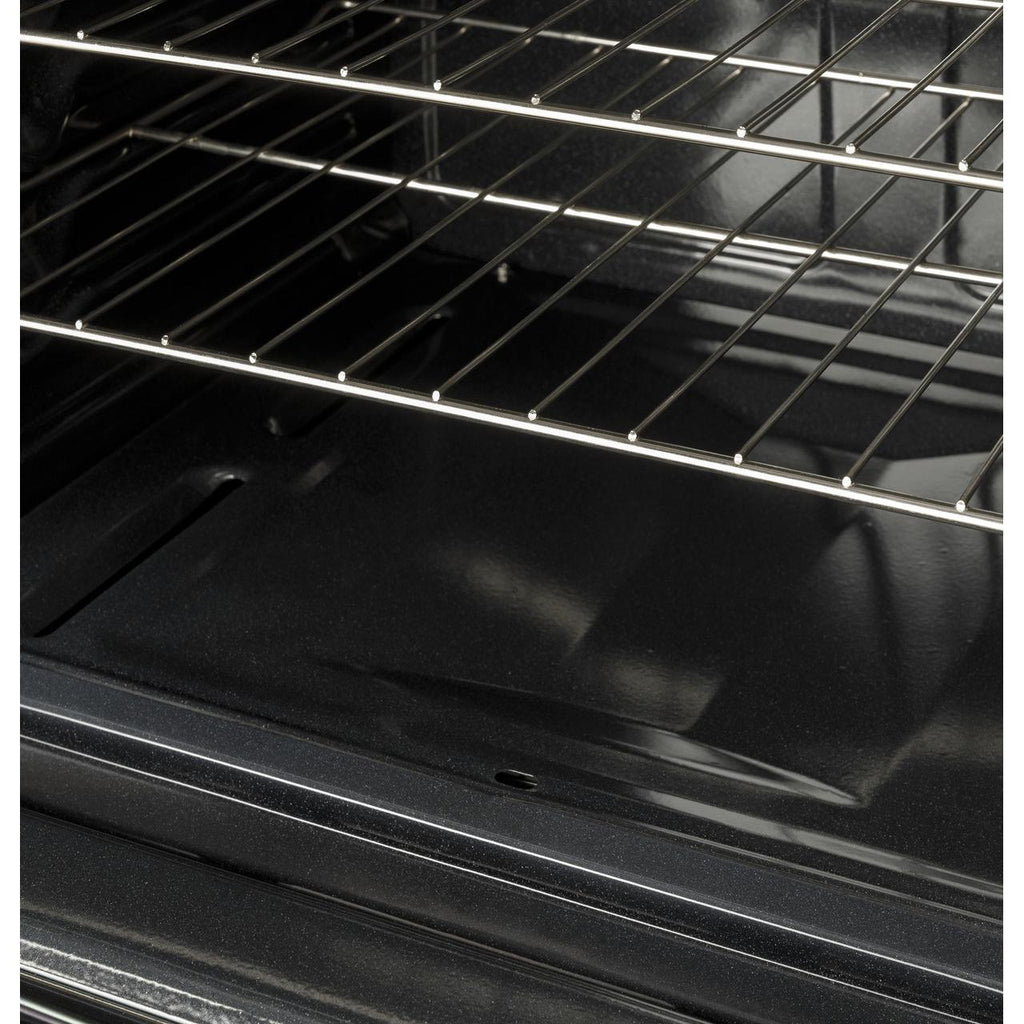

• 2 Flat Nickel Racks
• 6 Rack Positions
• Big View Oven Window
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 18.0 Bake / 18.0 Broiler
• Top Burner BTU Rating - LP (000's BTU's) (1) 12.0; (2) 9.5; (1) 5.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 13.0; (2) 9.5; (1) 5.0
• One-Piece Upswept Porcelain-Enamel Cooktop
• Heavy Steel Grates
• Audible Preheat Signal
• Auto Oven Shut-Off
• Certified Sabbath Mode
• Delay Bake Option
• Electronic Clock and Timer
• Hi / Low Broil
• 2 Flat Nickel Racks
• 6 Rack Positions
• Big View Oven Window
Drawer Features
Broiler
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Accessories
Included
LP Conversion Kit
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
46.25 inch(es) / 117.48 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
28.75 inch(es) / 73.02 cm
Weight
150 lb(s) / 68.04 kg
Additional Dimensions
• Depth with Door Open: 46 1/4"
• Height to Cooking Surface: 36" - 36 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 18-1/2" x 19"
• Height to Cooking Surface: 36" - 36 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 18-1/2" x 19"
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
172 lb(s) / 78.02 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691849384
