Features
DEEP FILL
Meets the needs of cleaning the most heavily soiled clothes, or loads that benefit from a deeper soak

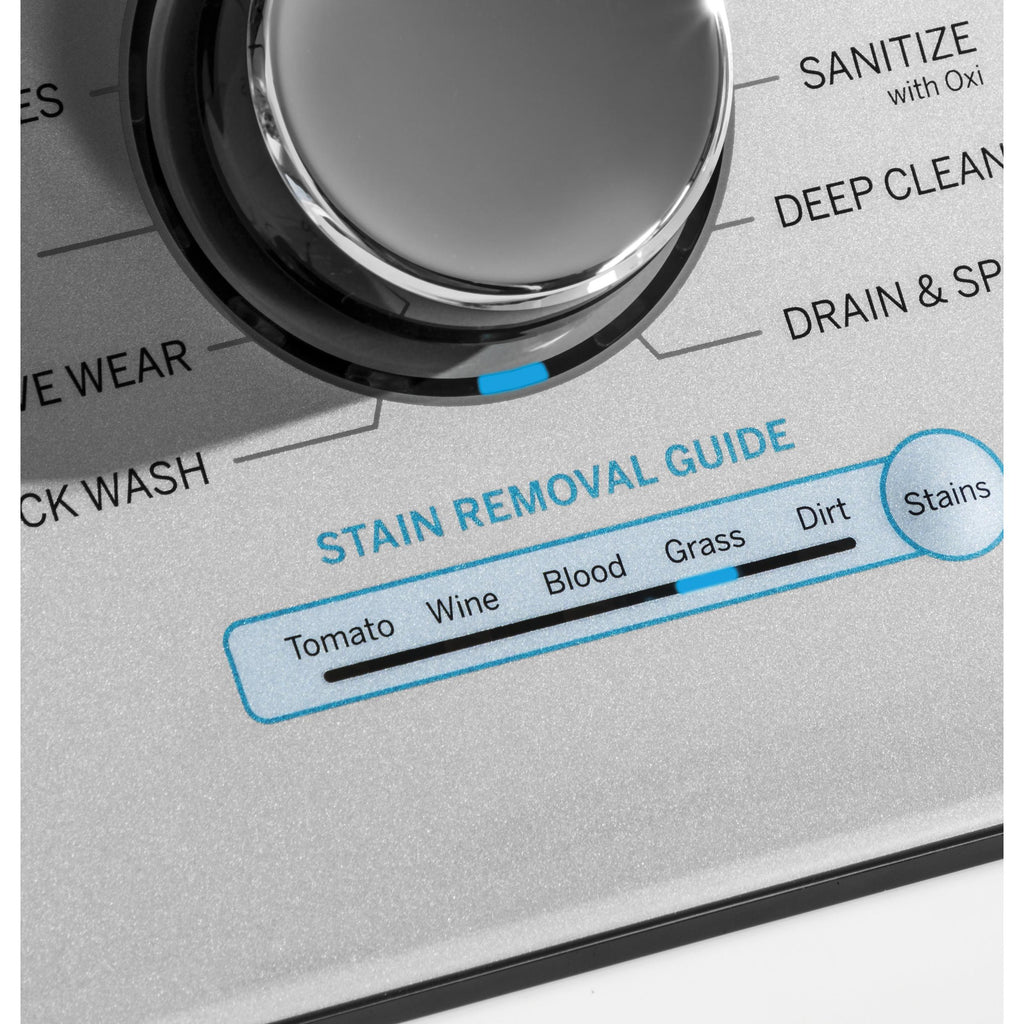

STAIN REMOVAL GUIDE
Clean 5 of the most common stains with preprogrammed settings that modify any cycle to help remove blood, tomato, wine, dirt and grass.
Additional Features
QUICK WASH
Provides a quick wash for lightly soiled items that are needed in a hurry.
10-YEAR WARRANTY
Rest assured knowing your washer is backed by a 10-year warranty
END-OF-CYCLE SIGNAL
Alerts you when the load is done, so clothes can be removed before wrinkles set in.
Specifications
General
Color
White
Manufacturer Color
White

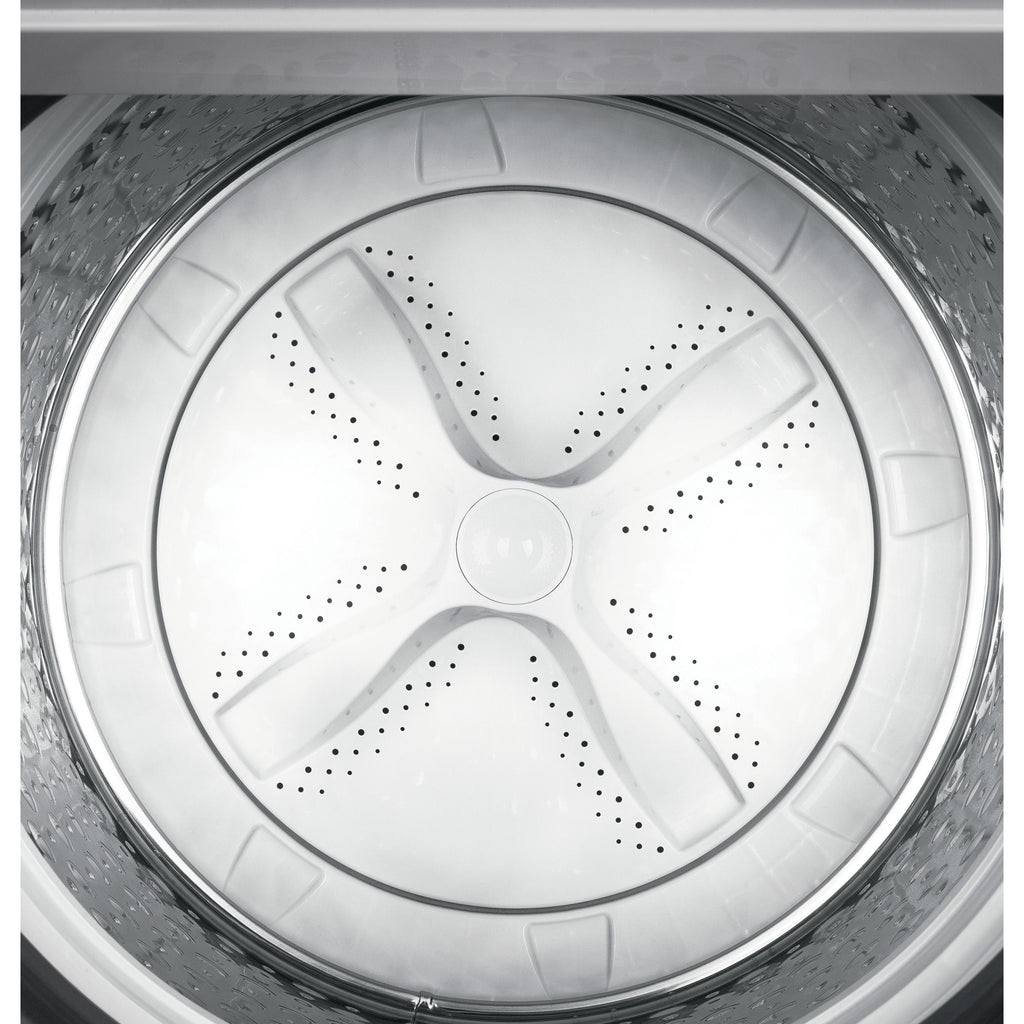

Tub Material
Stainless Steel
Maximum Speed
800 rpm
Temperature Settings
6
Capacity
Total Capacity DOE
4.8 cu. ft.
DOE (By Class)
4.3 cu.ft. and above
Cycle Information
Number of Cycles
12
Wash Cycles
• Colors/Normals
• Whites
• Delicates
• Jeans
• Active Wear
• Quick Wash
• Towels & Sheets
• Bulky Items
• Casuals
• Sanitize with Oxi
• Drain + Spin
• Cold Wash
• Whites
• Delicates
• Jeans
• Active Wear
• Quick Wash
• Towels & Sheets
• Bulky Items
• Casuals
• Sanitize with Oxi
• Drain + Spin
• Cold Wash
Options
• Stain Removal Guide
• My Cycle
• Delay Wash
• Extra Rinse
• Deep Rinse (select when using fabric softener)
• Auto Soak
• Warm Rinse
• Deep Fill
• My Cycle
• Delay Wash
• Extra Rinse
• Deep Rinse (select when using fabric softener)
• Auto Soak
• Warm Rinse
• Deep Fill
Features
Technologies
• Tide PODS™ Dispense
• QuietWash
• QuietWash

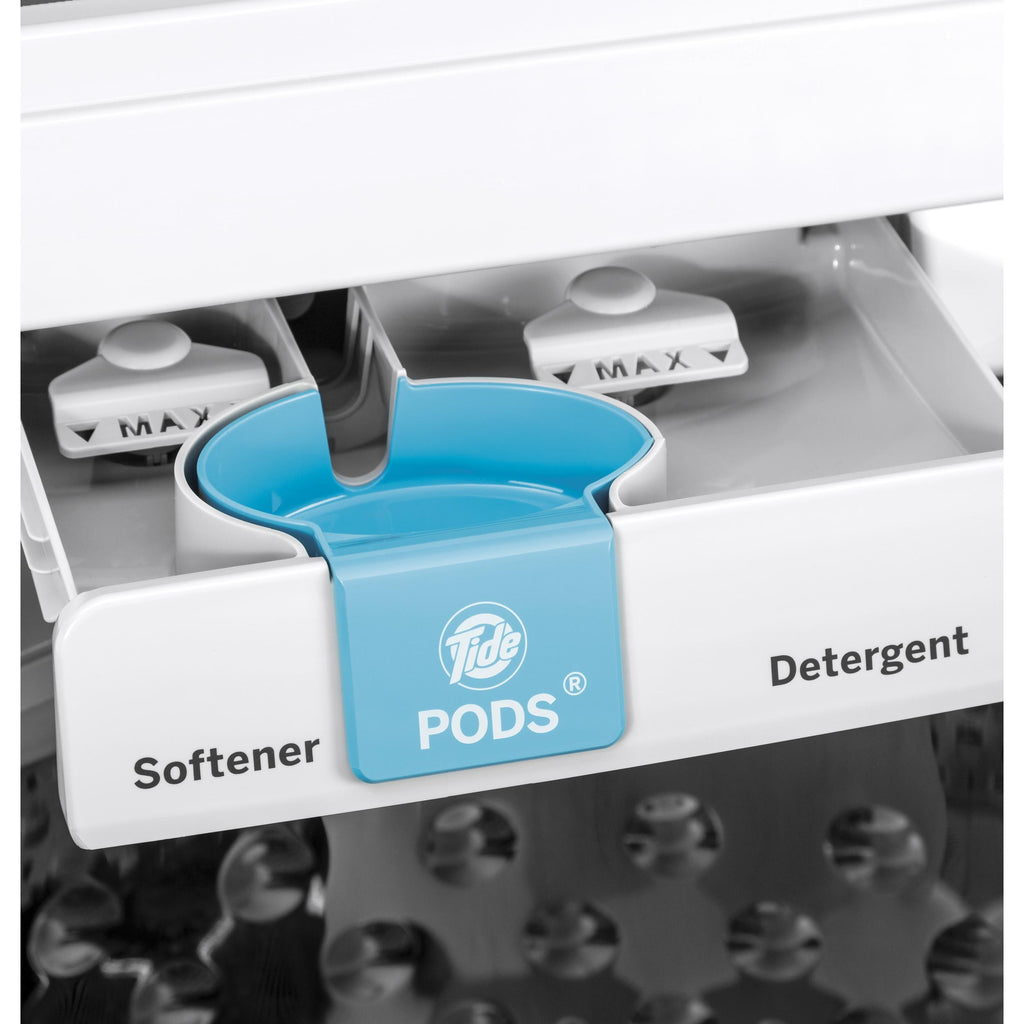

Dispensers
• Bleach
• Detergent (Liquid/Powder/PODS)
• Fabric Softener
• Detergent (Liquid/Powder/PODS)
• Fabric Softener
Additional Information
• Deep Fill
• Soft-close glass lid
• Stain Pretreat
• Auto Balance Suspension System
• Leveling Legs
• Direct Drive
• Optional Soil Levels: Extra Light, Light, Normal, Heavy and Extra Heavy
• LED Cycle Status Lights
• Digital Cycle Countdown
• End-of-Cycle Signal
• Soft-close glass lid
• Stain Pretreat
• Auto Balance Suspension System
• Leveling Legs
• Direct Drive
• Optional Soil Levels: Extra Light, Light, Normal, Heavy and Extra Heavy
• LED Cycle Status Lights
• Digital Cycle Countdown
• End-of-Cycle Signal
Electrical Information
Information
• 120 V
• 60 Hz
• 10 A
• 60 Hz
• 10 A
Accessories
Optional
• WiFi Connect: PBX10W00Y0
• Fill Hose: WH14X10011
• Fill Hose: WH14X10011
Dimensions
Class Width
26" - 27"
Width
27 inch(es) / 68.58 cm
Height
46 inch(es) / 116.84 cm
Depth
27 inch(es) / 68.58 cm
Weight
147 lb(s) / 66.68 kg
Additional Dimensions
Height With Lid Open: 56"
Shipping Dimensions
Width
27.5 inch(es) / 69.85 cm
Height
46 inch(es) / 116.84 cm
Depth
29 inch(es) / 73.66 cm
Weight
164.99 lb(s) / 74.84 kg
Warranty
Warranty
• Limited 1 Year Parts And Labor
• 10-Year Motor Parts Only
• 10-Year Motor Parts Only
UPC
UPC#
084691842910
